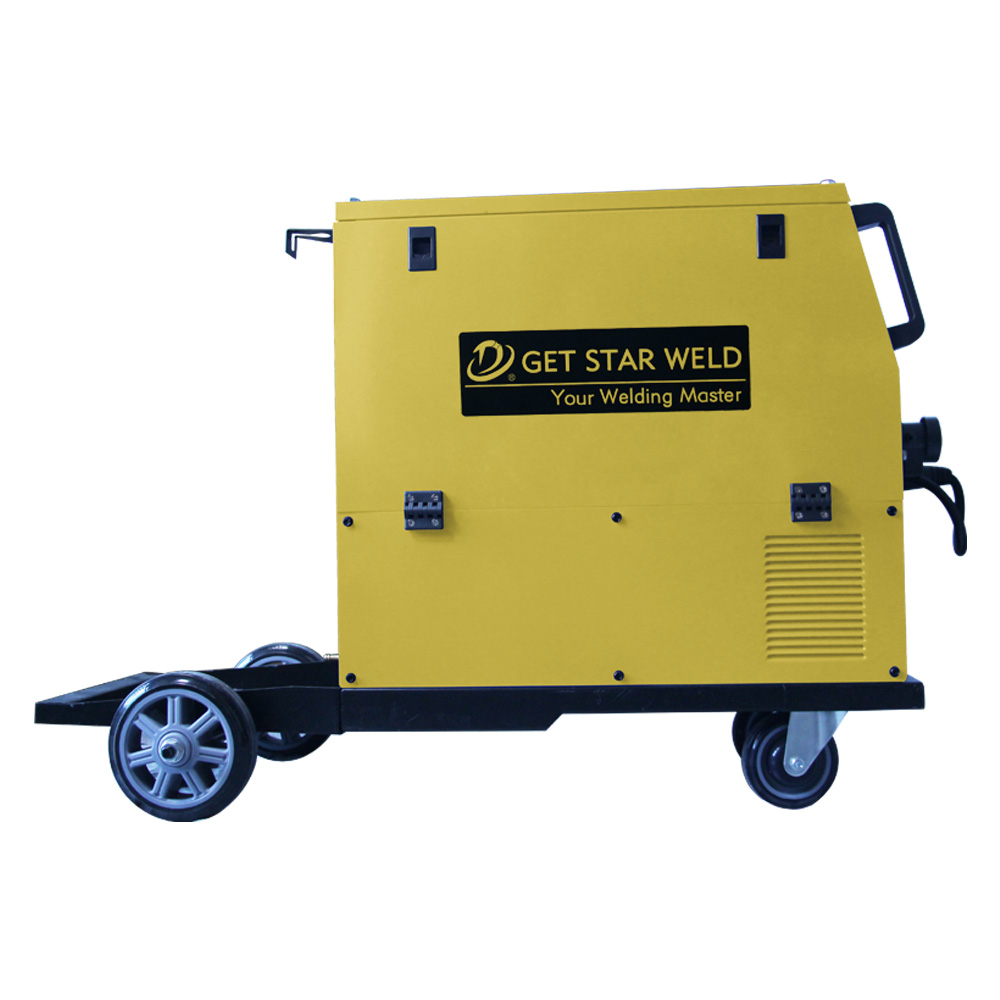

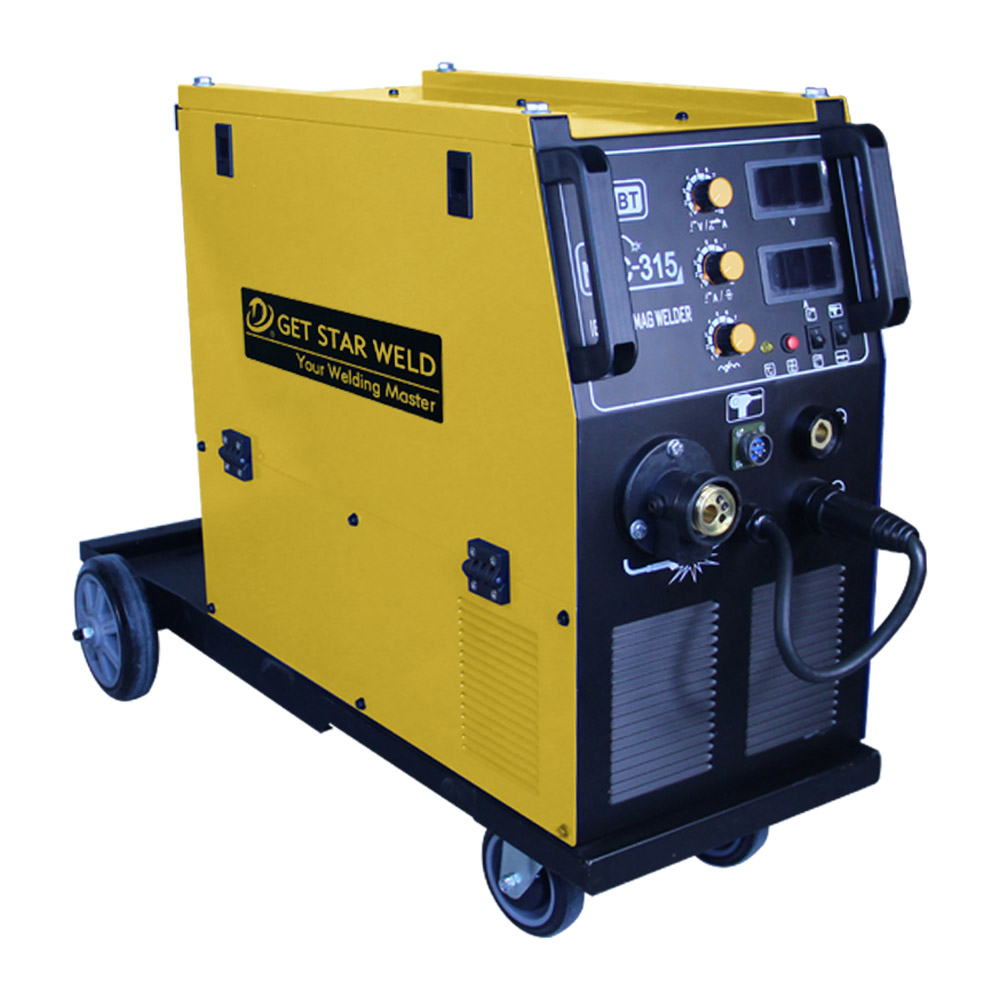

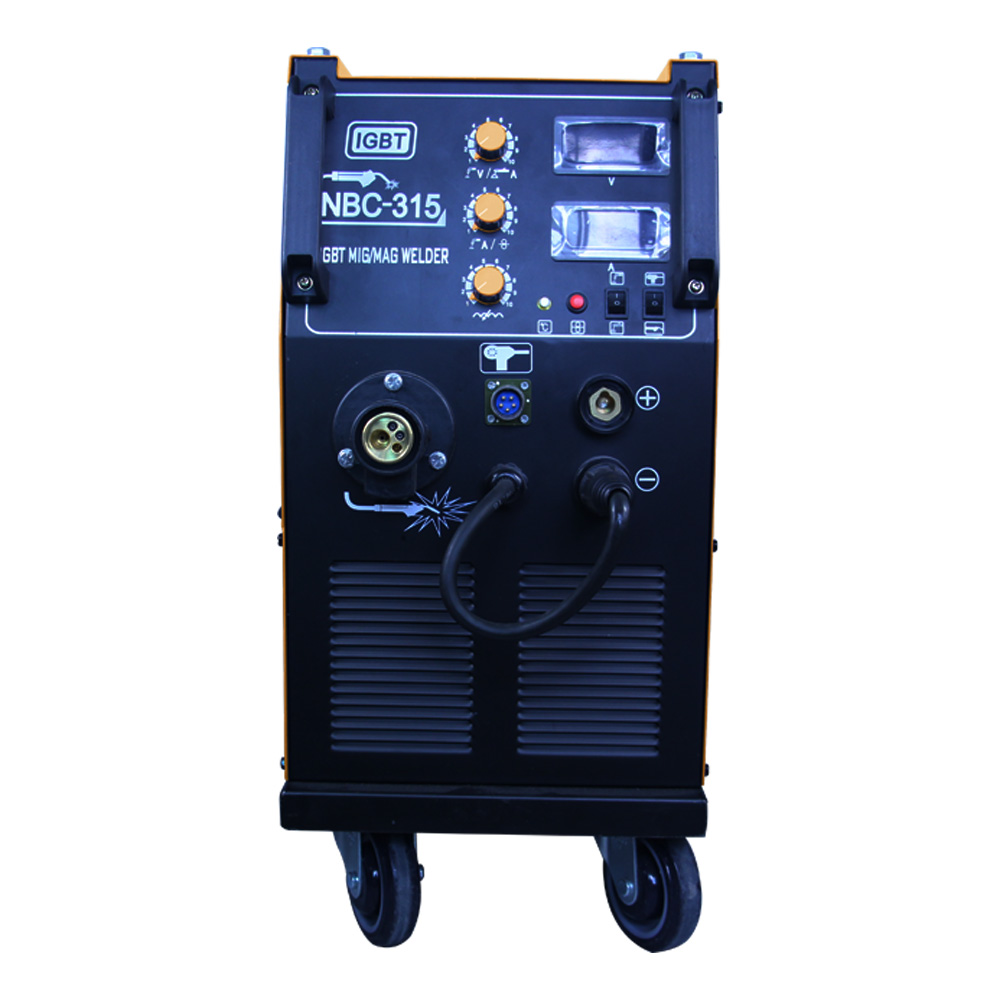

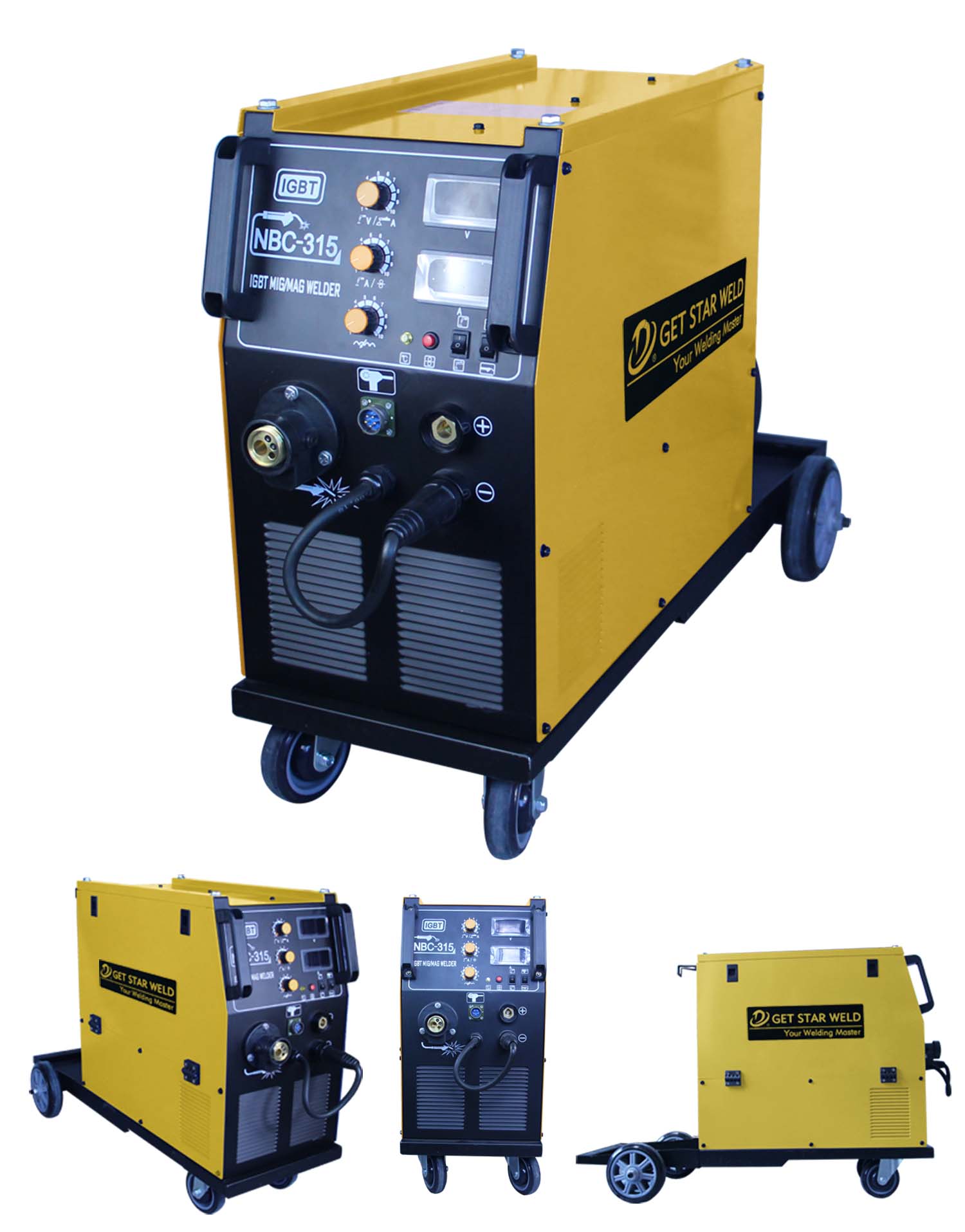

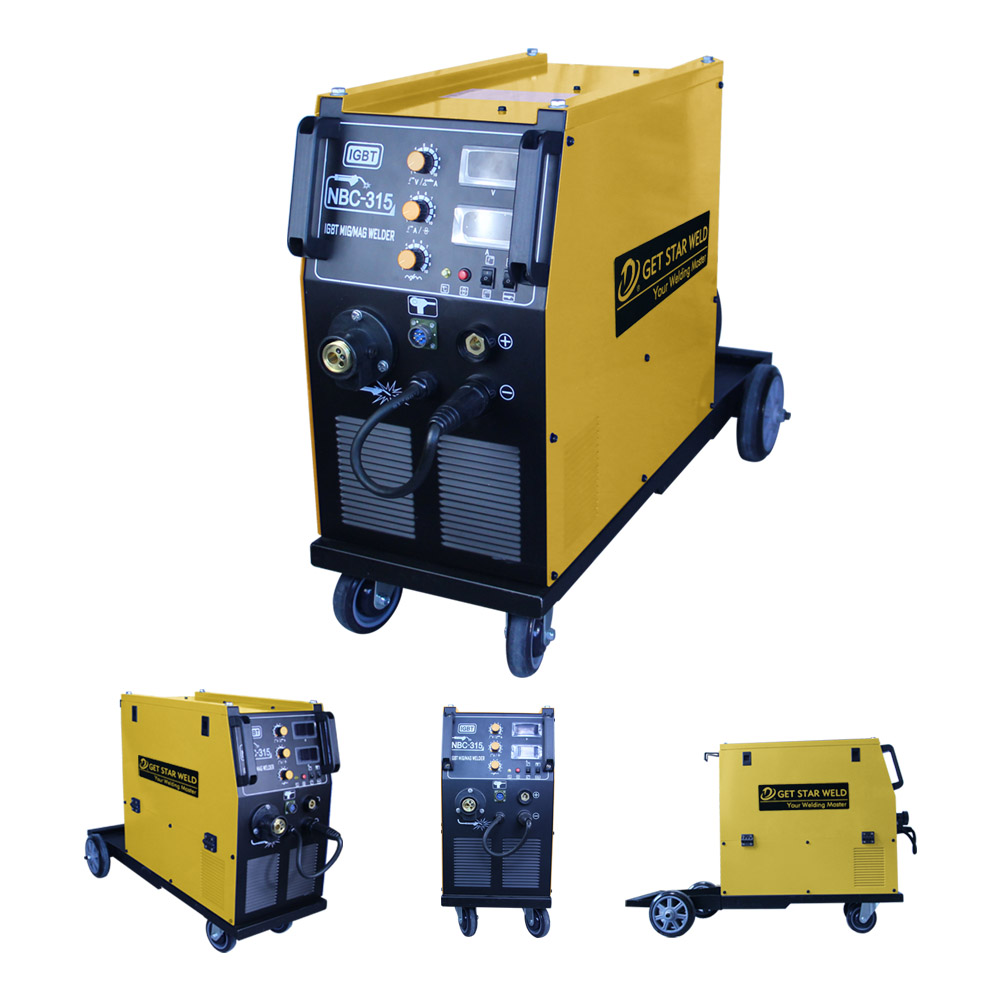

NBC-315 trailer single IGBT 220V single phase

Name: NBC-315Y （18）

Input power voltage: 220V±10%/50Hz

Rated input power: 9.9KVA

Rated input current: 40A/15A

Rated load duration: 60%

Output current adjustment range: 50～315A

Output voltage regulation range: 16.5～29.7V

Output no-load voltage: 50V

efficiency（%）: ≧85%

The model of Wire Feeder: Y(one-body)

Diameter of Wire: Ф1.0～Ф1.0mm

Weight（KG）: 34Kg

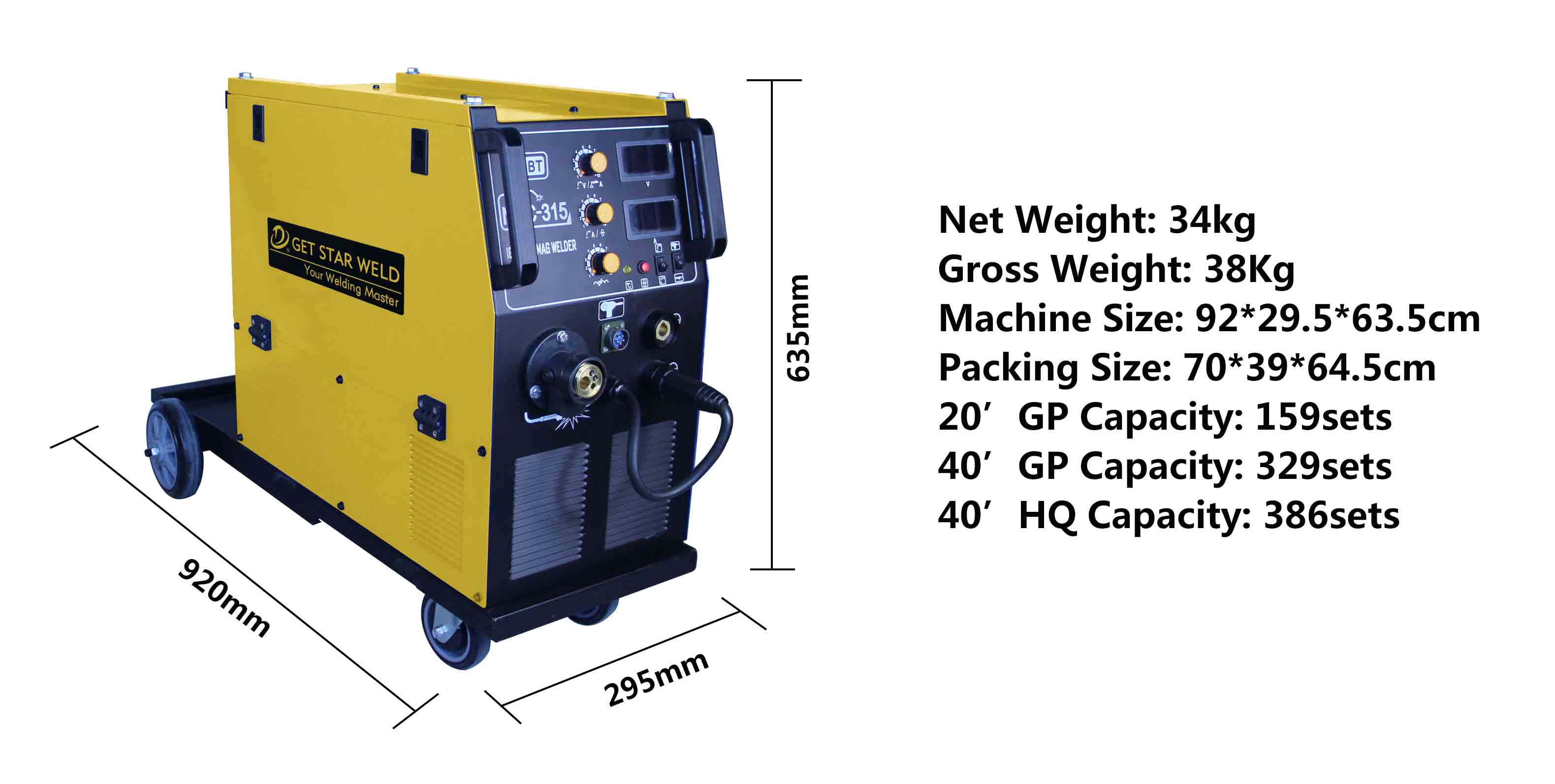

Overall dimension（mm3）: 920×295×635
