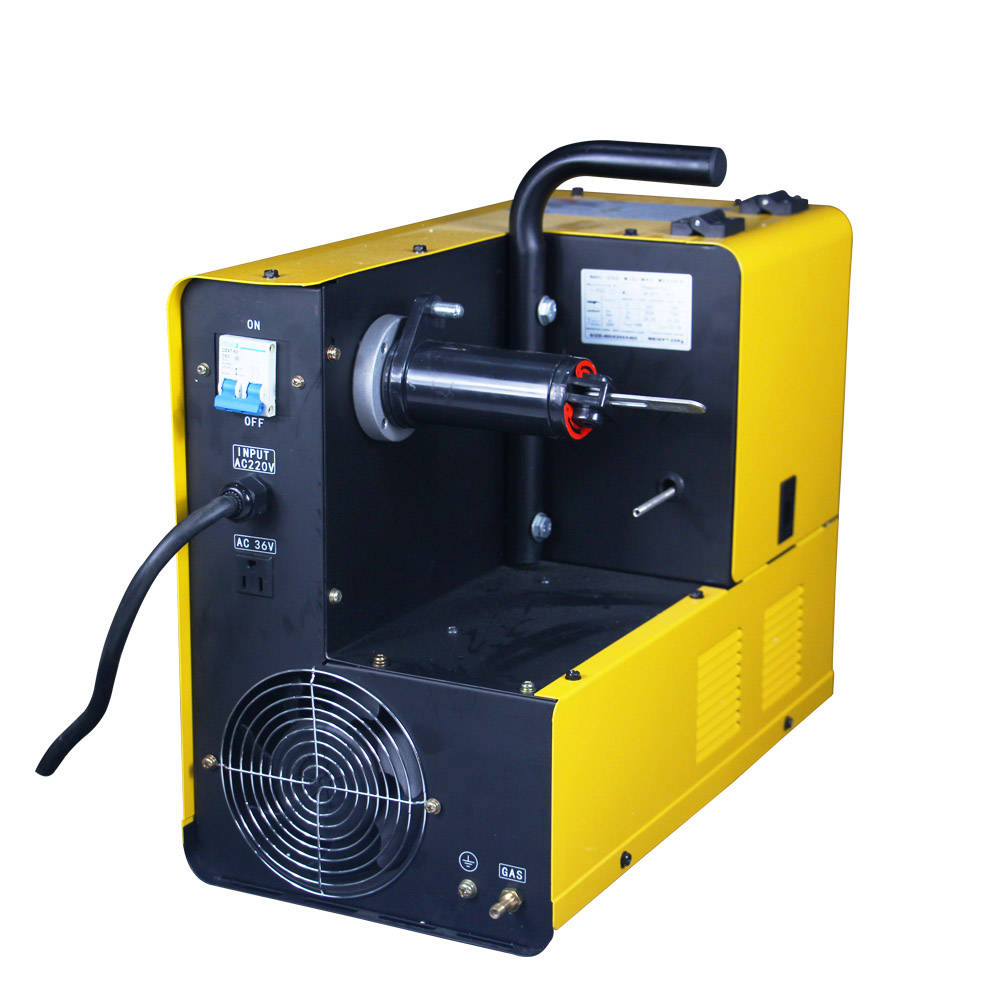

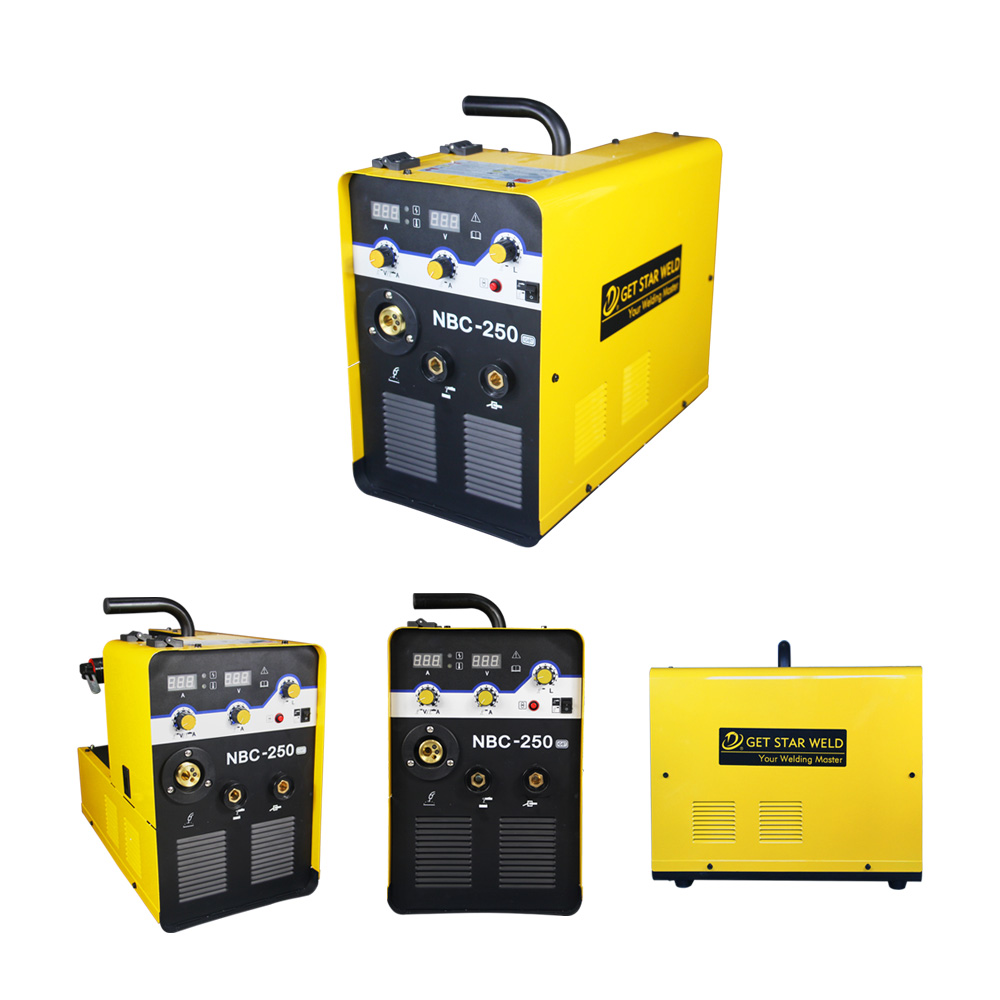

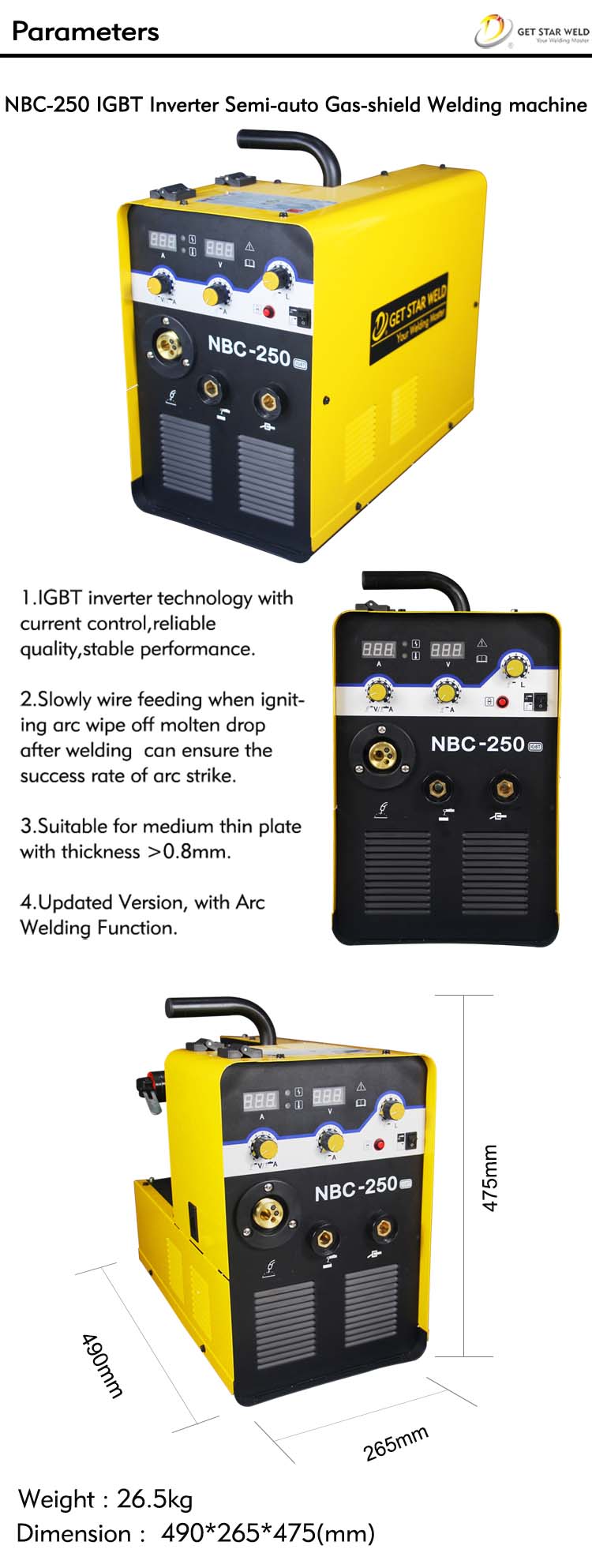

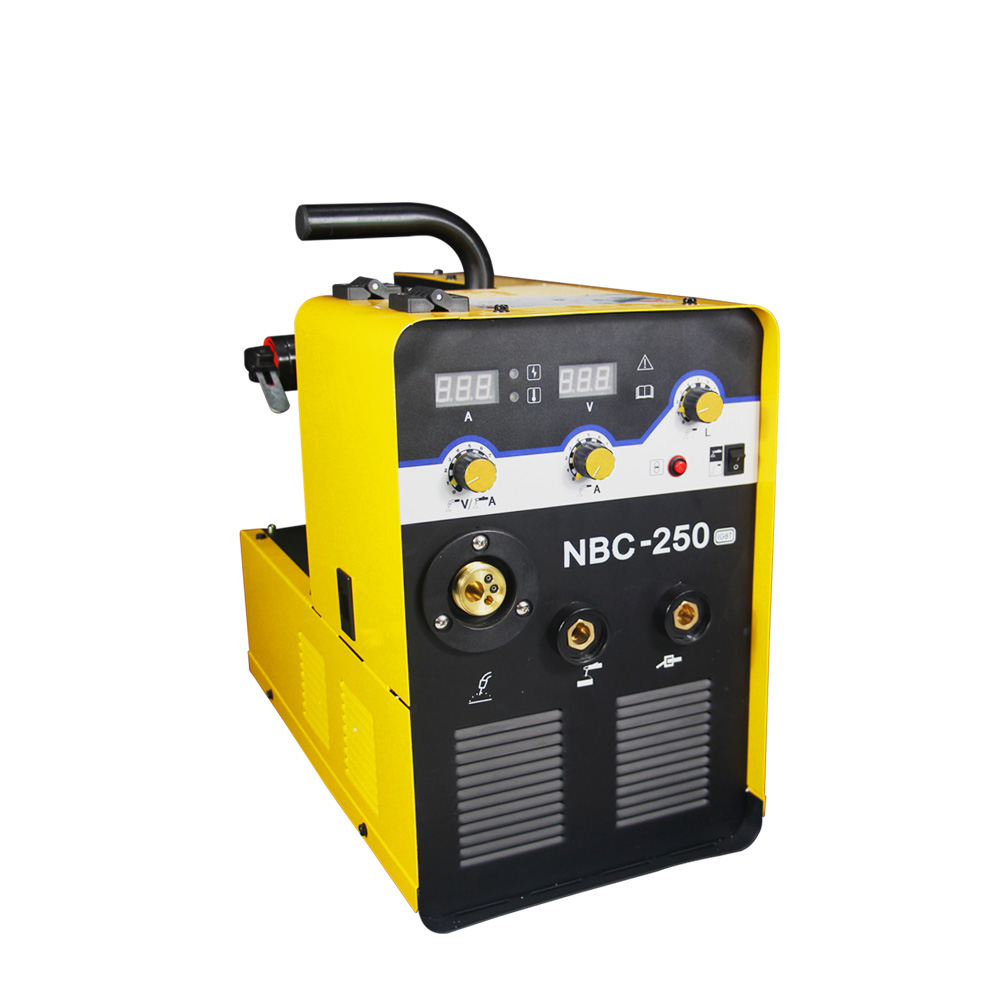

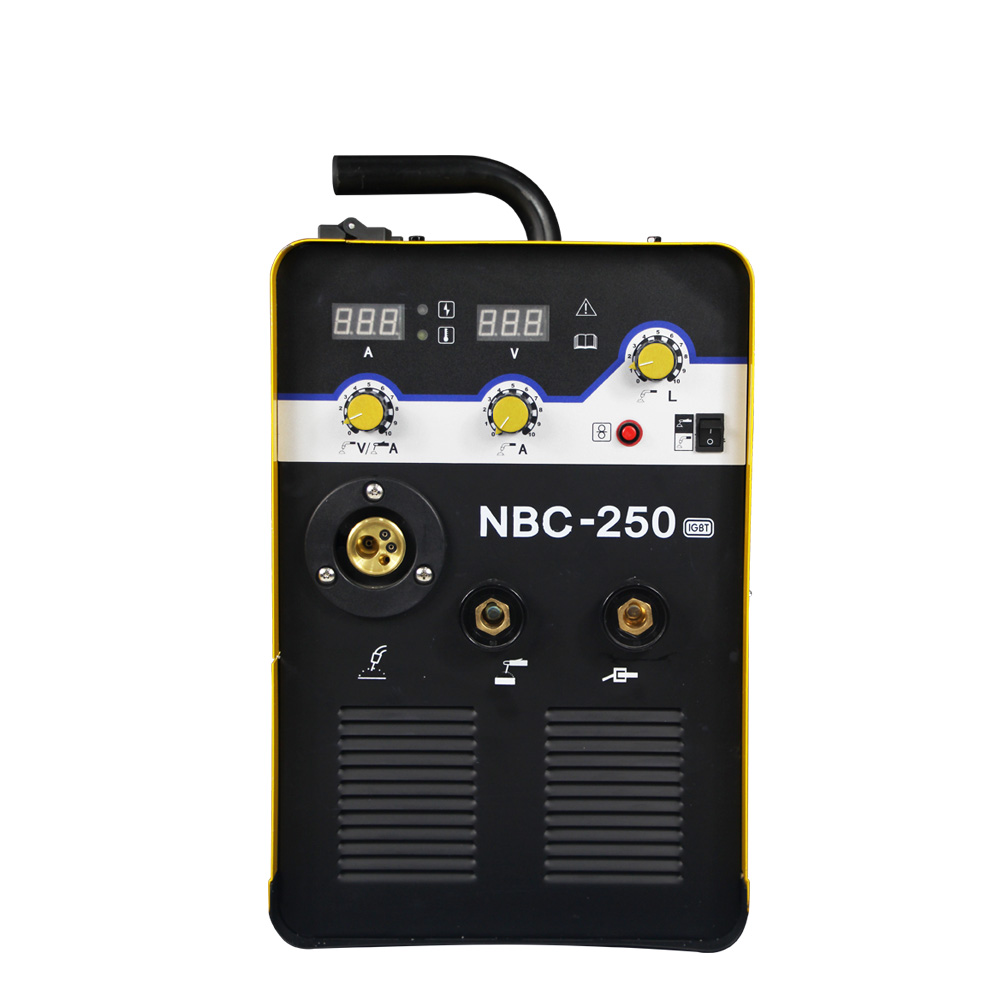

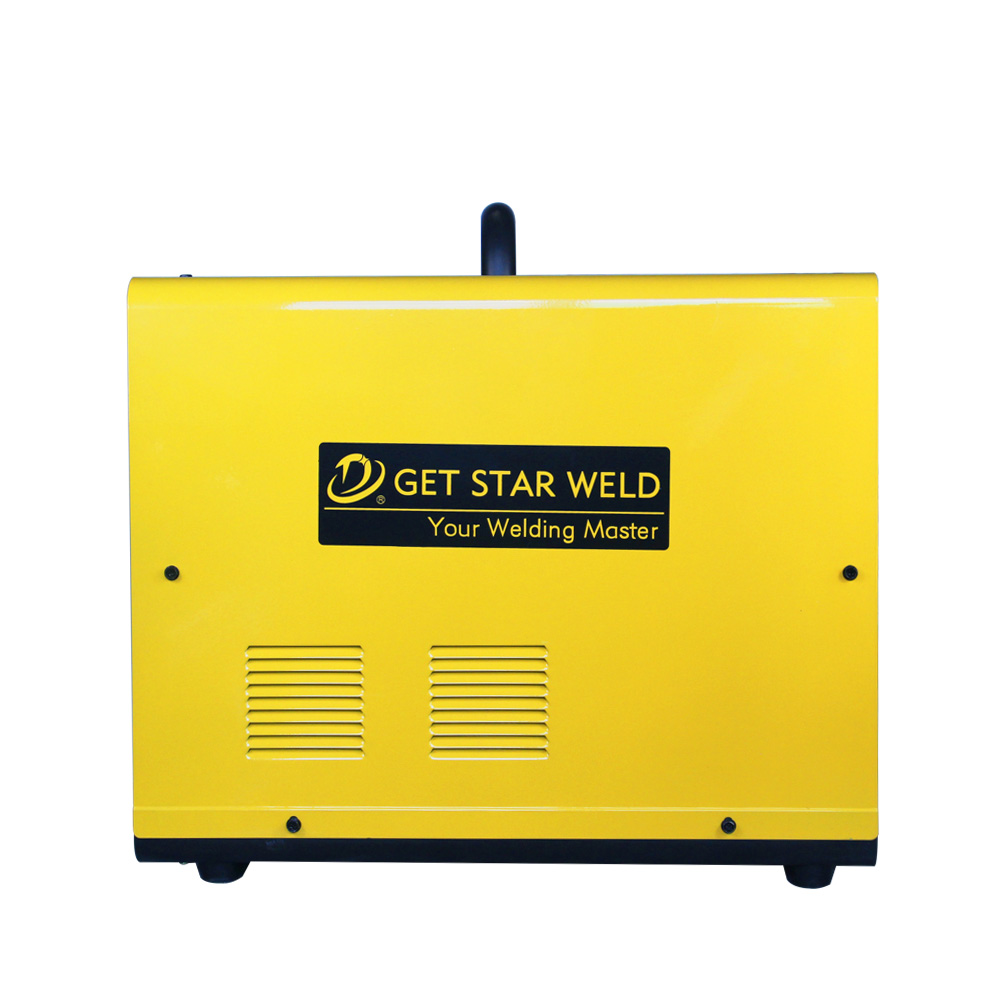

MIG-250Y single IGBT 220V single phase

MIG-250Y single IGBT 220V single phase

Name: NBC-250Y(12)

Input power voltage: 220V±10%/50Hz

Rated input power: 8.8KVA

Rated input current: 36A

Rated load duration: 60%

Output current adjustment range: 50~250A

Output voltage regulation range: 16.5~27.5V

Output no-load voltage: 50V

efficiency(%):  ≧85%

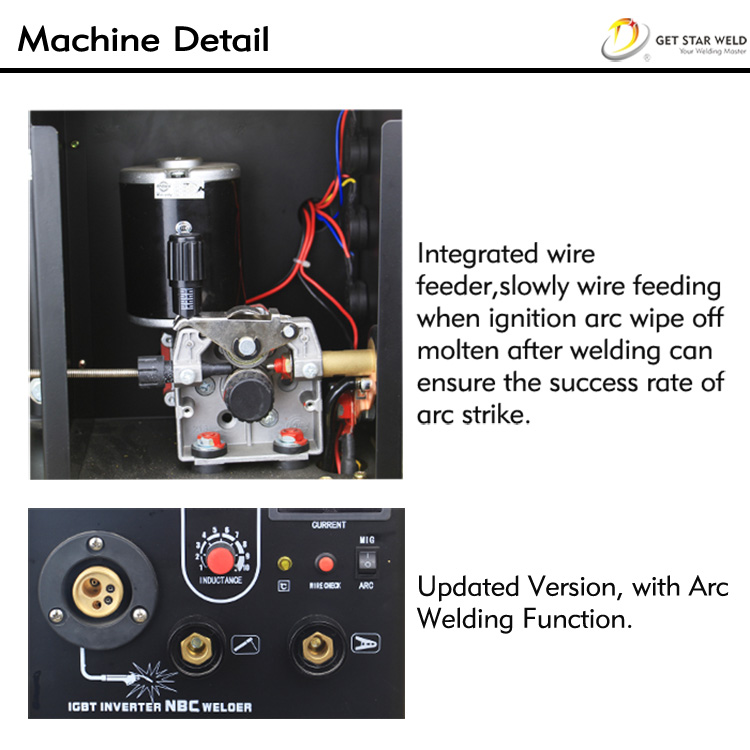

The model of Wire Feeder: Y(one-body)

Diameter of Wire: Ф0.8~Ф1.0mm

Weight(KG): 25Kg

Overall dimension(mm3): 490×265×450

MIG-250Y single IGBT 220V single phase
Name NBC-250Y12
Input power voltage 220V±10%/50Hz
Rated input power 8.8KVA
Rated input current 36A
Rated load duration 60%
Output current adjustment range 50250A
Output voltage regulation range 16.527.5V
Output no-load voltage 50V
efficiency% 85%
The model of Wire Feeder Y(one-body)
Diameter of Wire Ф0.8Ф1.0mm
WeightKG 25Kg
Overall dimensionmm3 490×265×450
