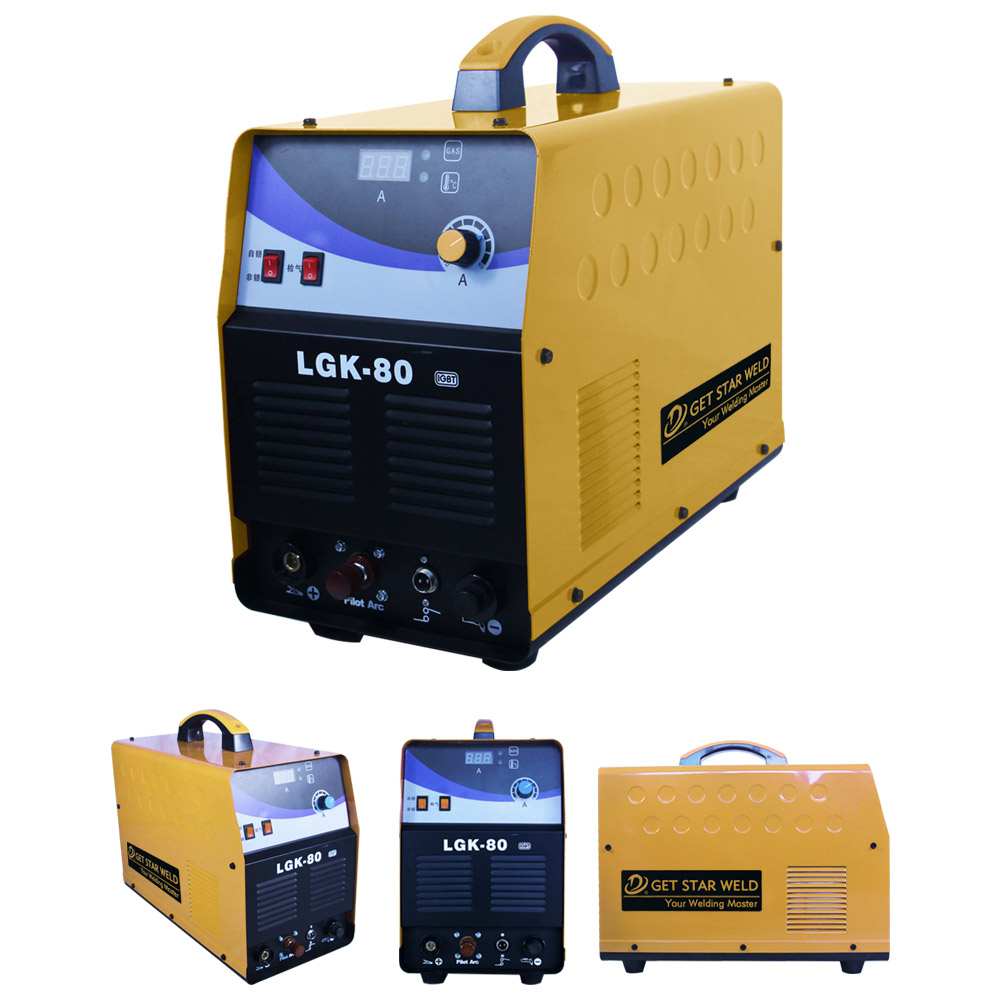

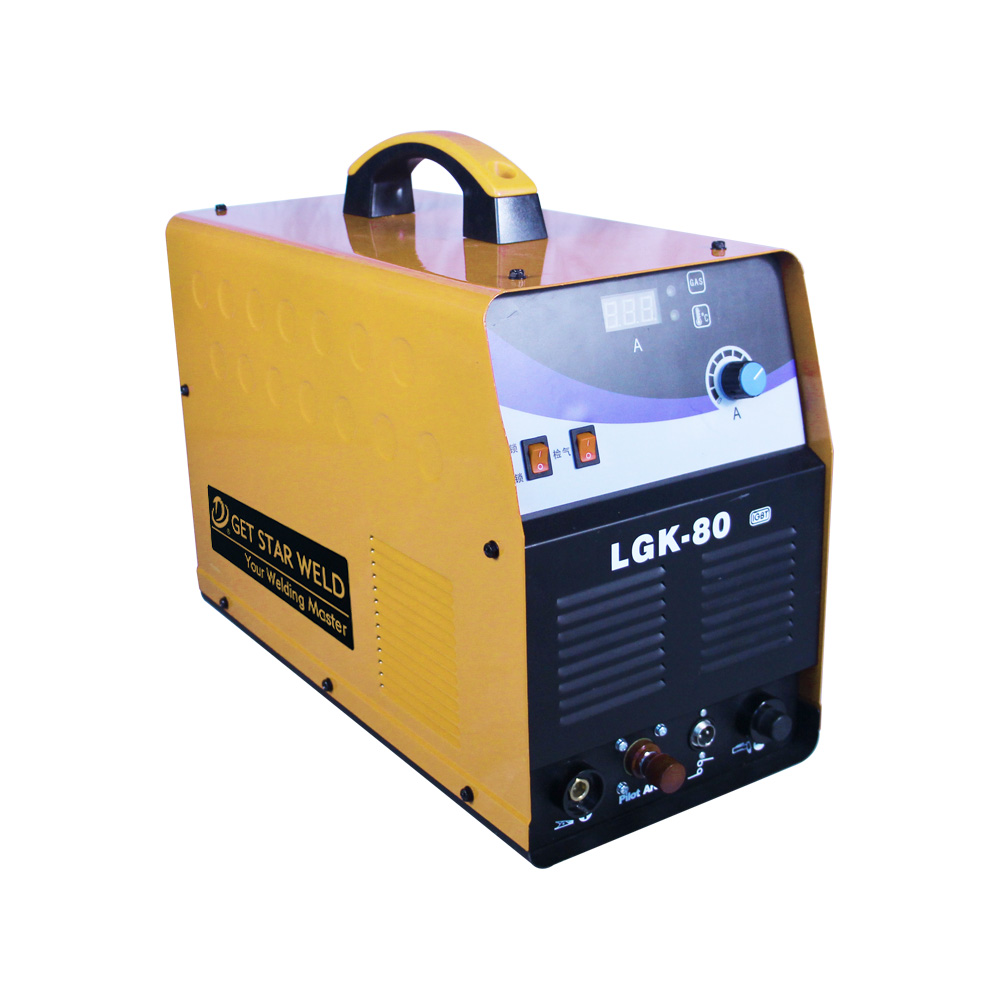

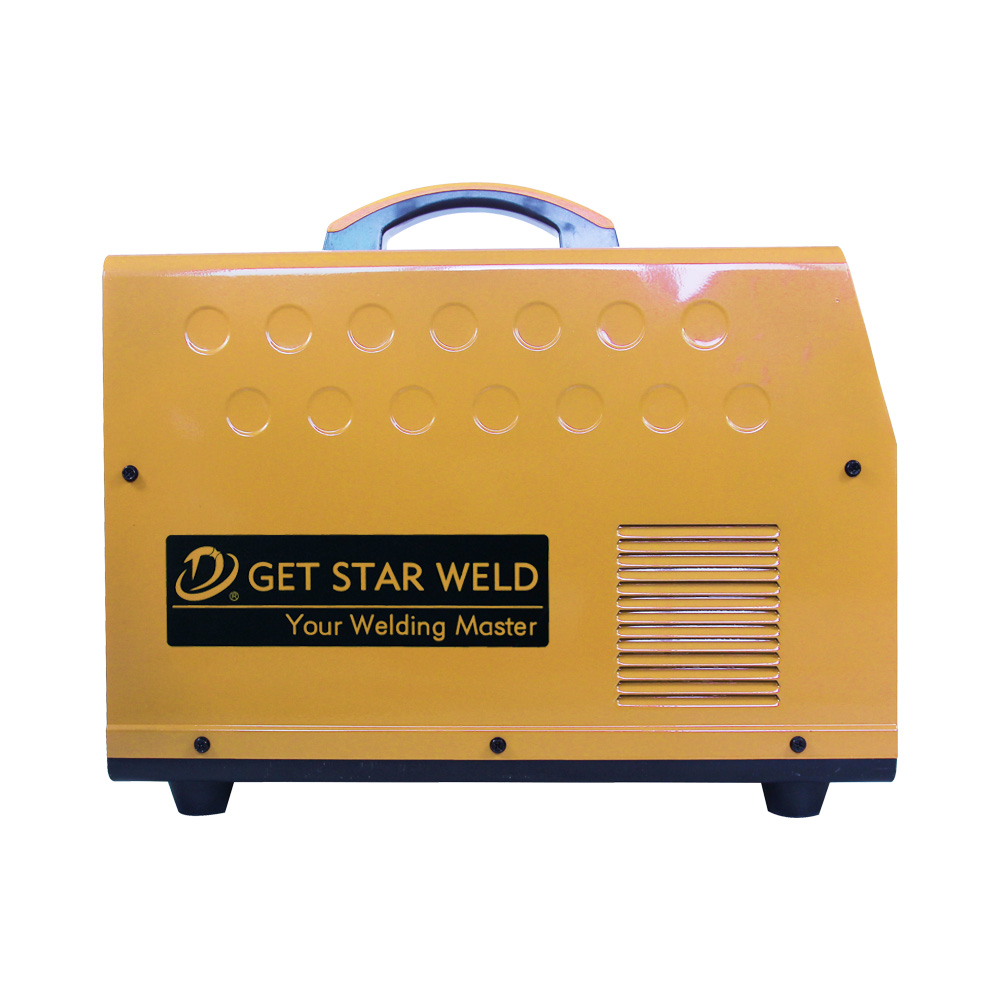

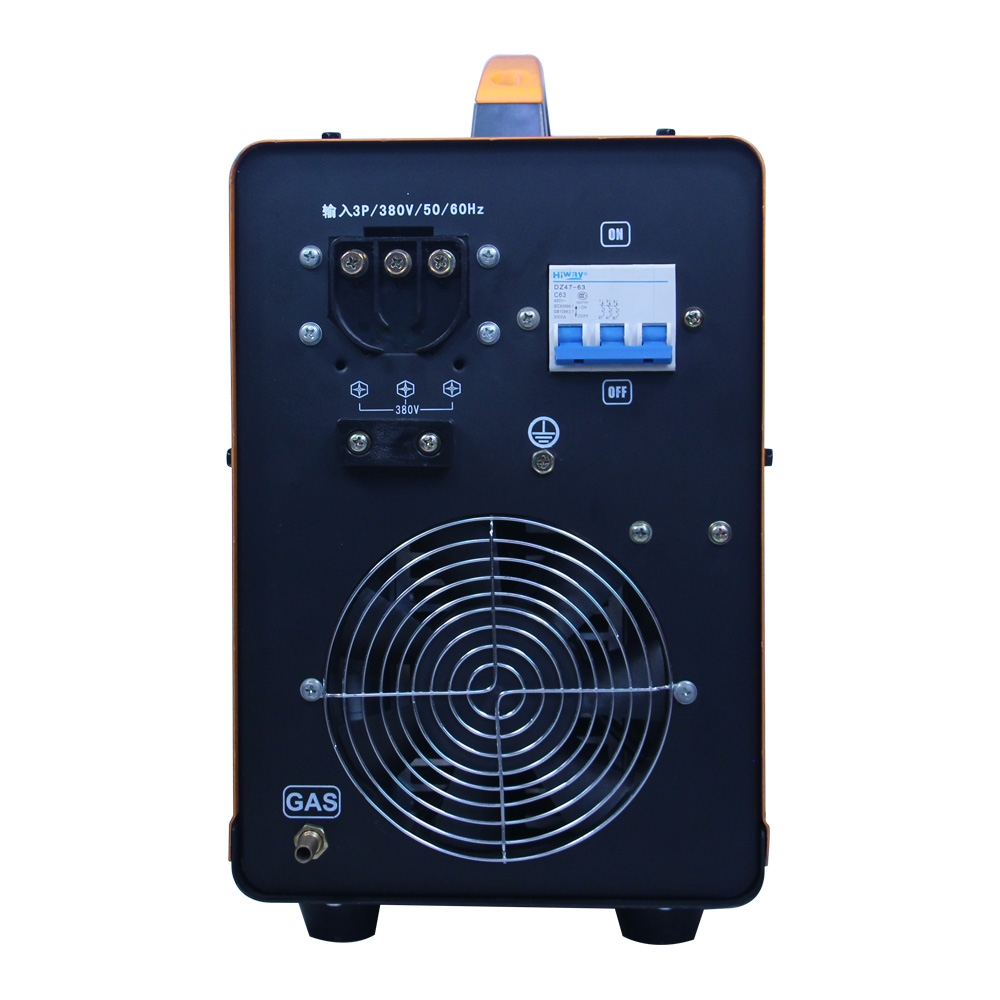

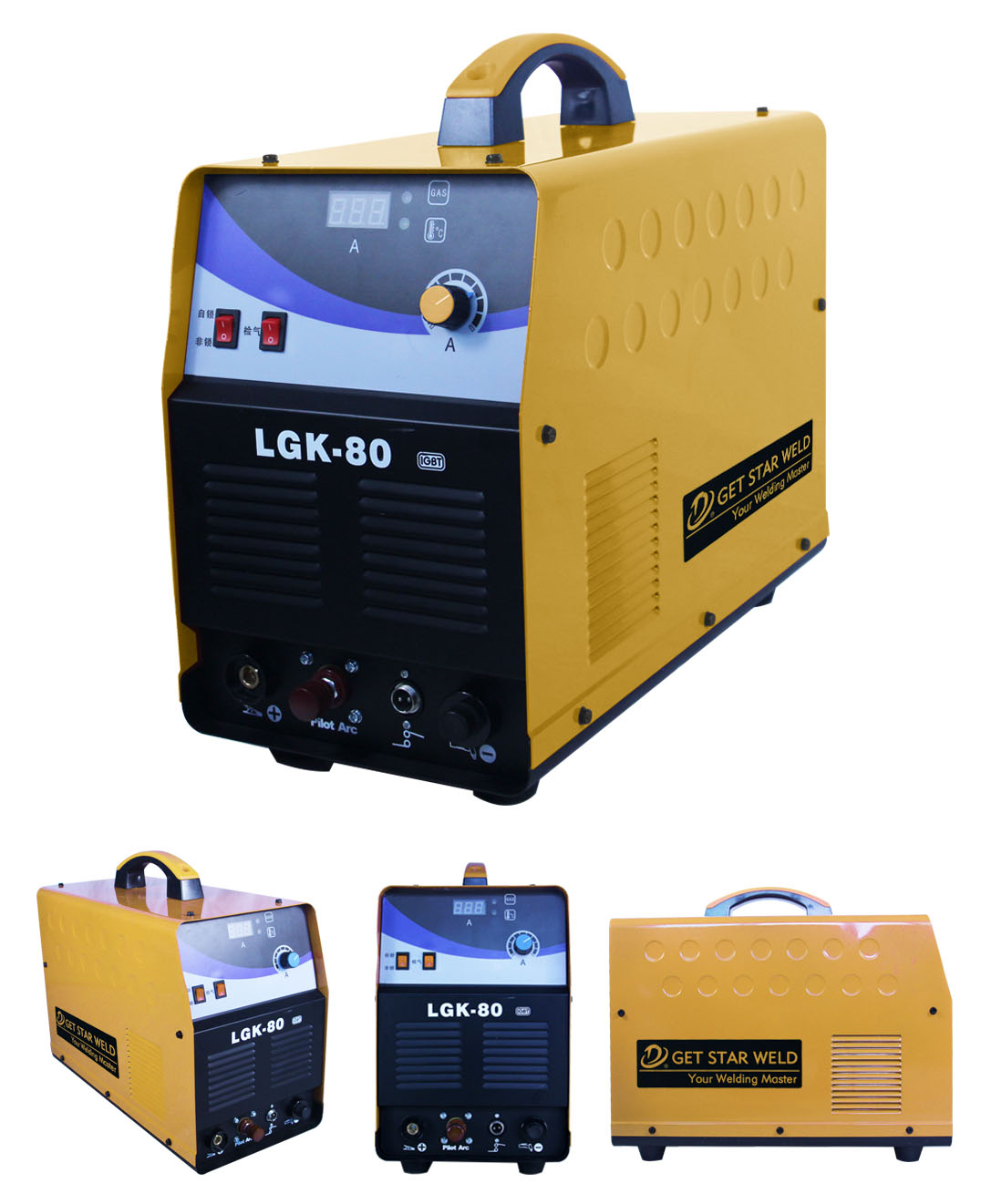

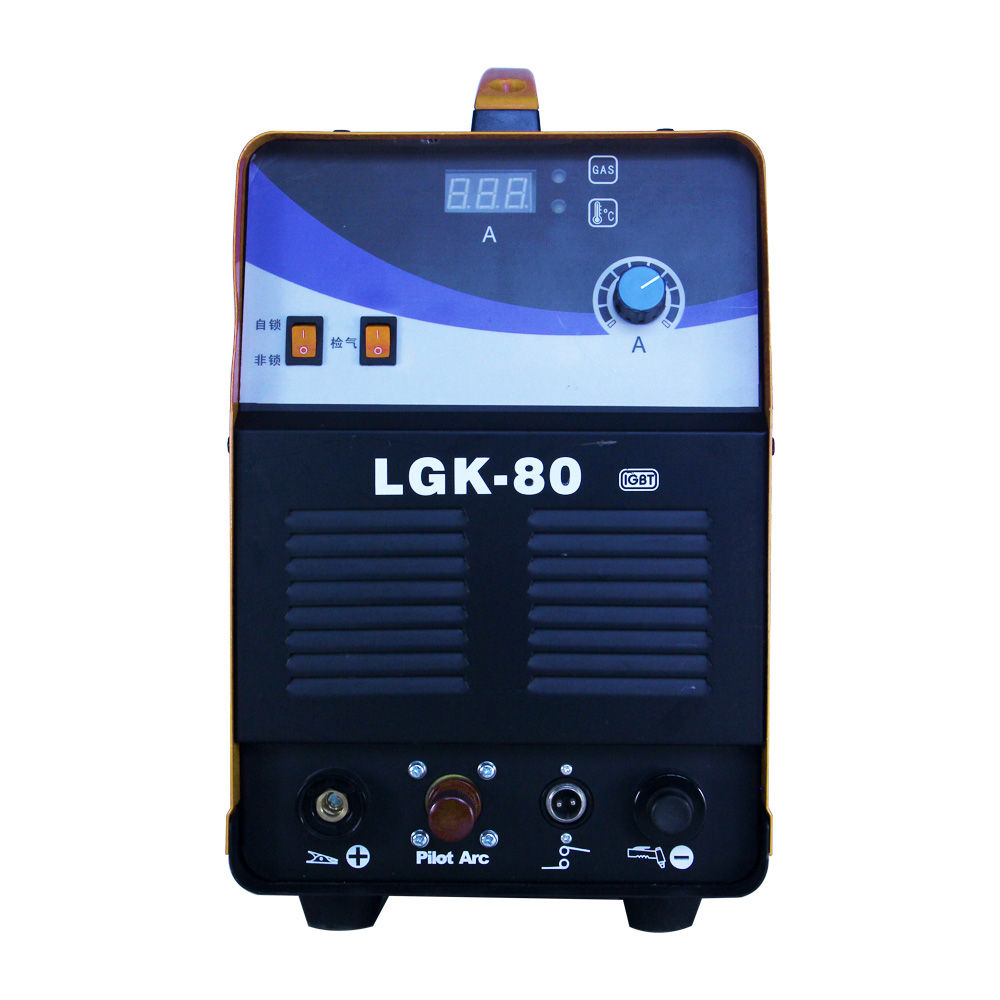

LGK-80 IGBT module 380v three phase

LGK-80 IGBT module 380v three phase

name: LGK-80IGBT(3)

Input power voltage: three phase 380V±10%/50Hz

Rated input power: 11KVA

Rated load duration: 60%

the range of output current adjustment: 25~80A

the range of Output voltage adjustment: 90~112V

No-load voltage: 320V

the qulity tickness of cutting(steel): 0.3-16

the maximun tickness of cutting(steel): 30

Use plasma gas: Compressed air

Working gas pressure range: 0.4~0.5MPa

Torch cooling method: air cooled

Arc start mode: Non-contact

Machine Weight: 20Kg

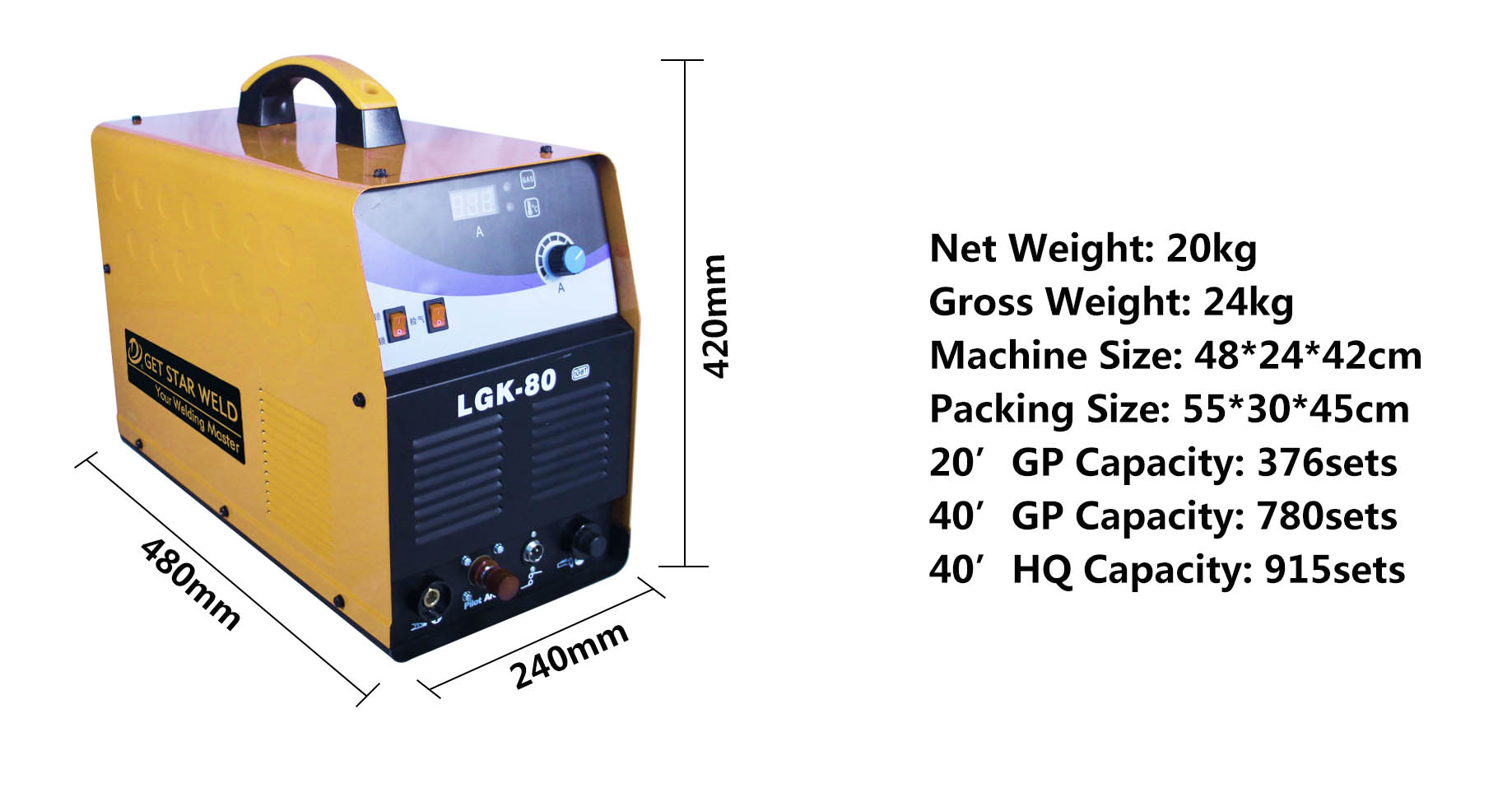

Overall dimension(mm3): 480×240×420

LGK-80 IGBT module 380v three phase
name LGK-80IGBT(3)
Input power voltage three phase 380V±10%/50Hz
Rated input power 11KVA
Rated load duration 60%
the range of output current adjustment 2580A
the range of Output voltage adjustment  90112V
No-load voltage 320V
the qulity tickness of cutting(steel) 0.3-16
the maximun tickness of cutting(steel) 30
Use plasma gas Compressed air
Working gas pressure range 0.40.5MPa
Torch cooling method air cooled
Arc start mode  Non-contact
Machine Weight 20Kg
Overall dimensionmm3 480×240×420
