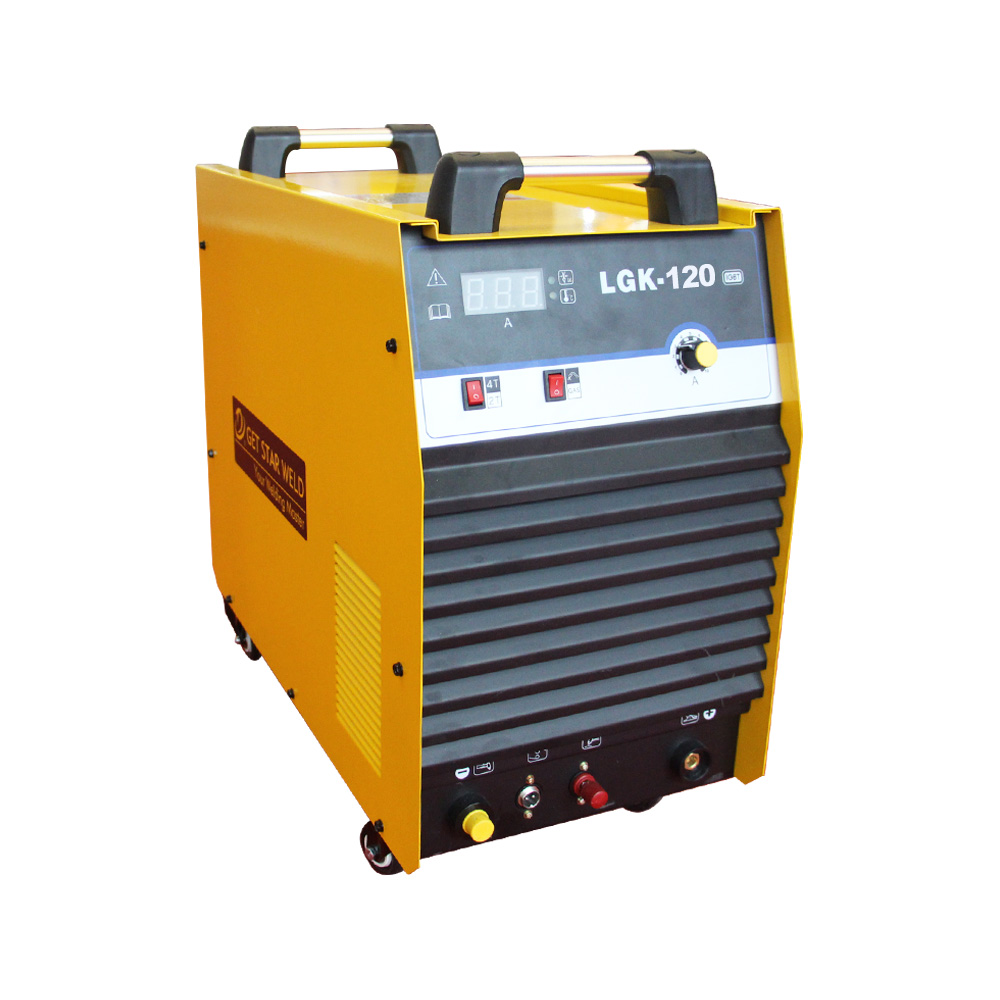

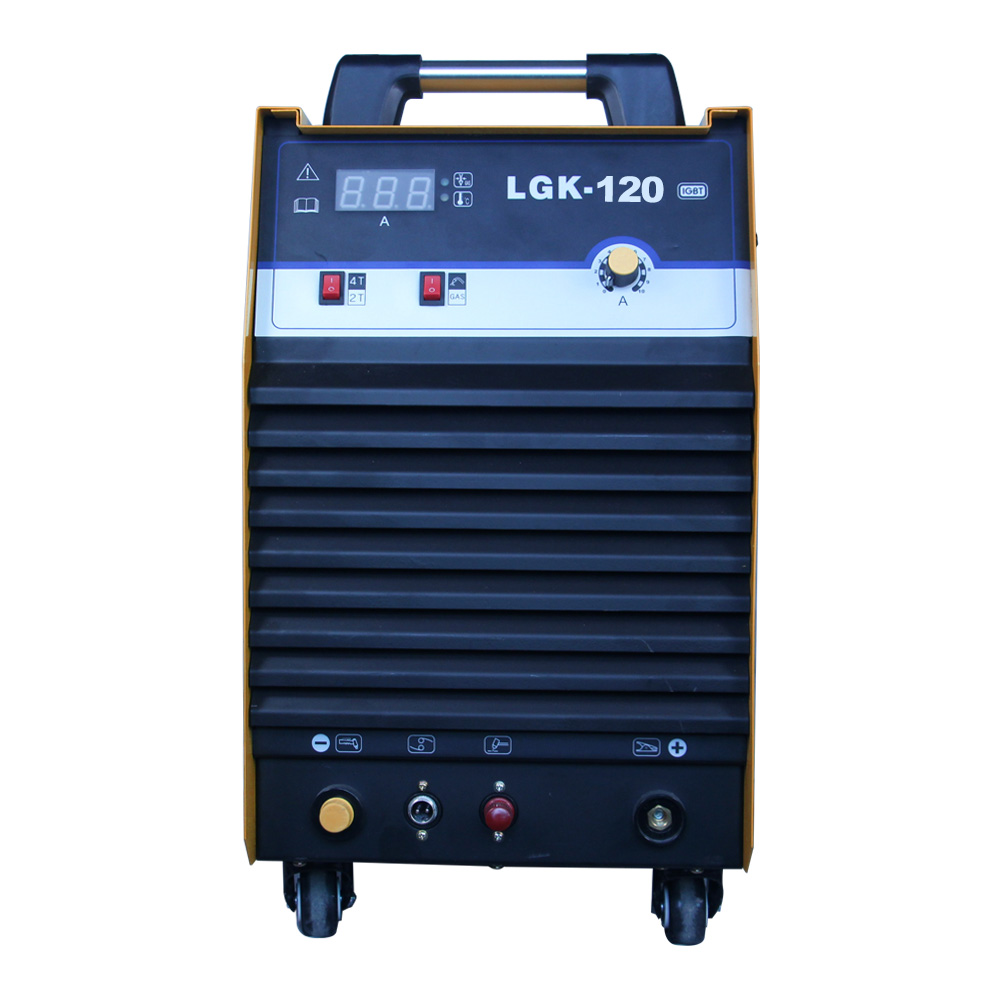

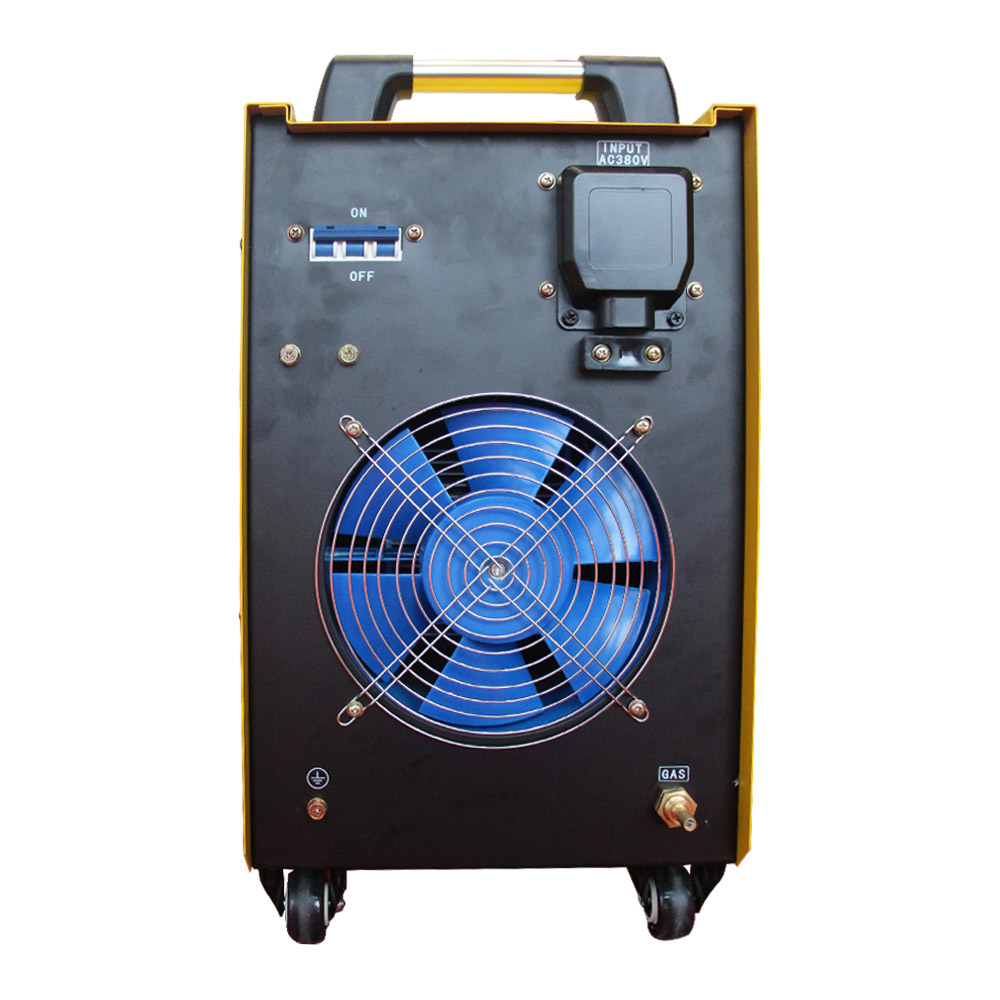

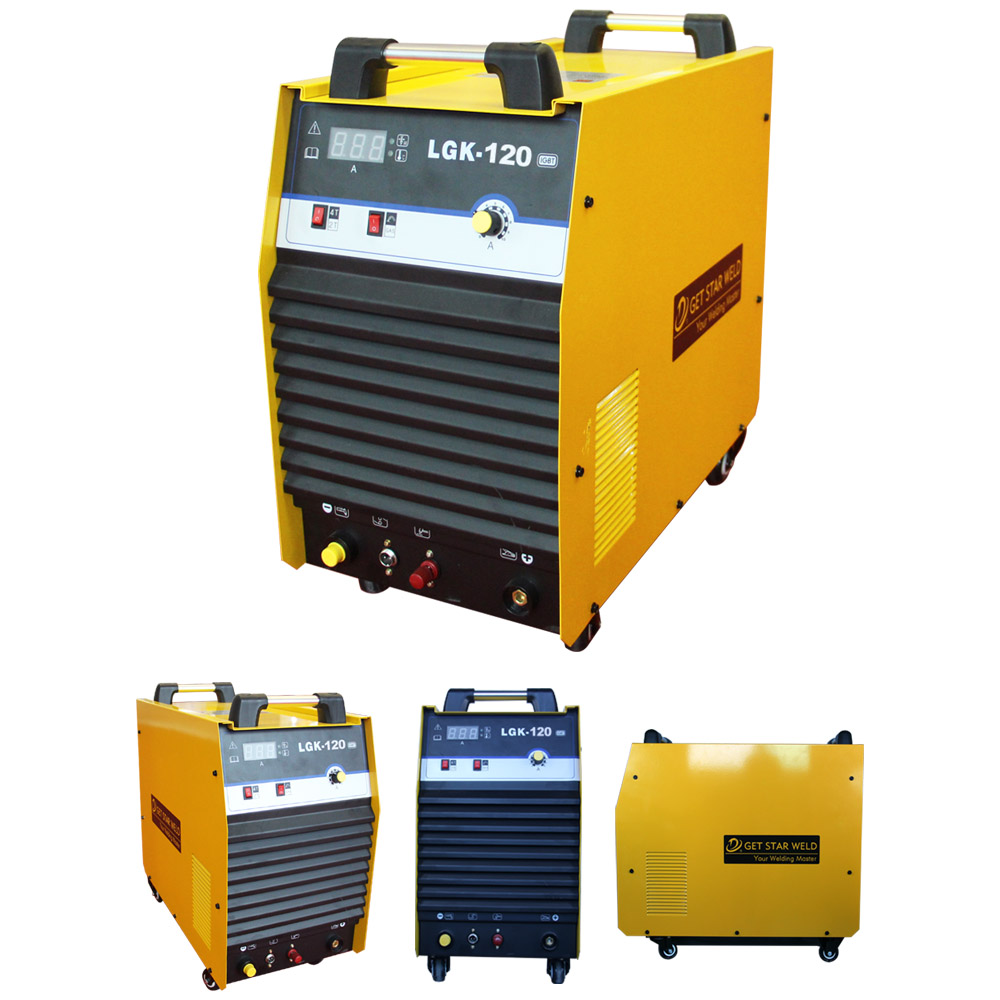

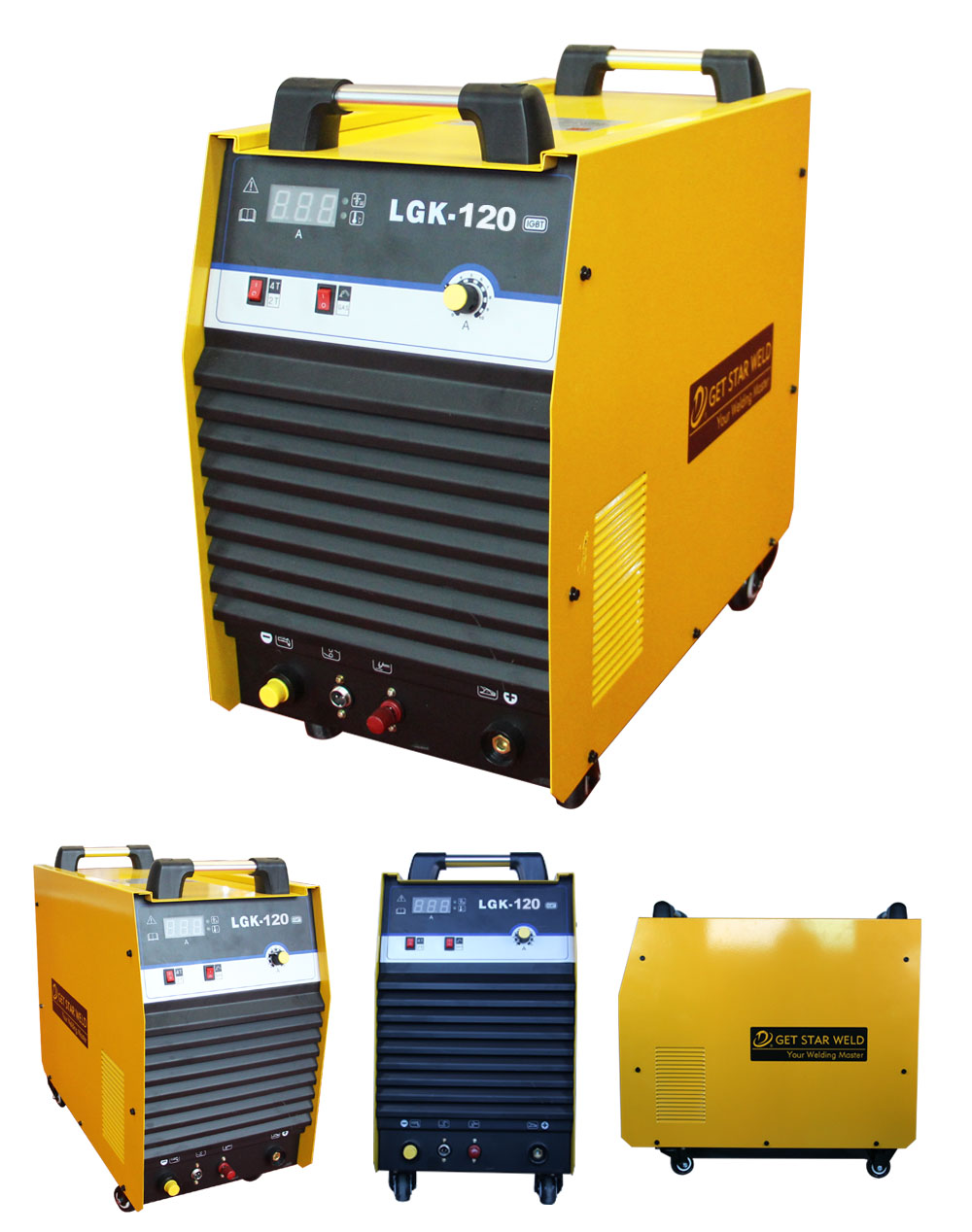

name:  LGK-120IGBT(5)

Input power voltage: three phase 380V±10%/50Hz

Rated input power: 17.2KVA

Rated load duration: 60%

the range of output current adjustment: 25～120A

the range of Output voltage adjustment: 90～128V

No-load voltage: 320V

the qulity tickness of cutting(steel) : 0.5-27

the maximun tickness of cutting(steel) : 45

Use plasma gas: Compressed air

Working gas pressure range: 0.4～0.5MPa

Torch cooling method: air cooled

Arc start mode: Non-contact

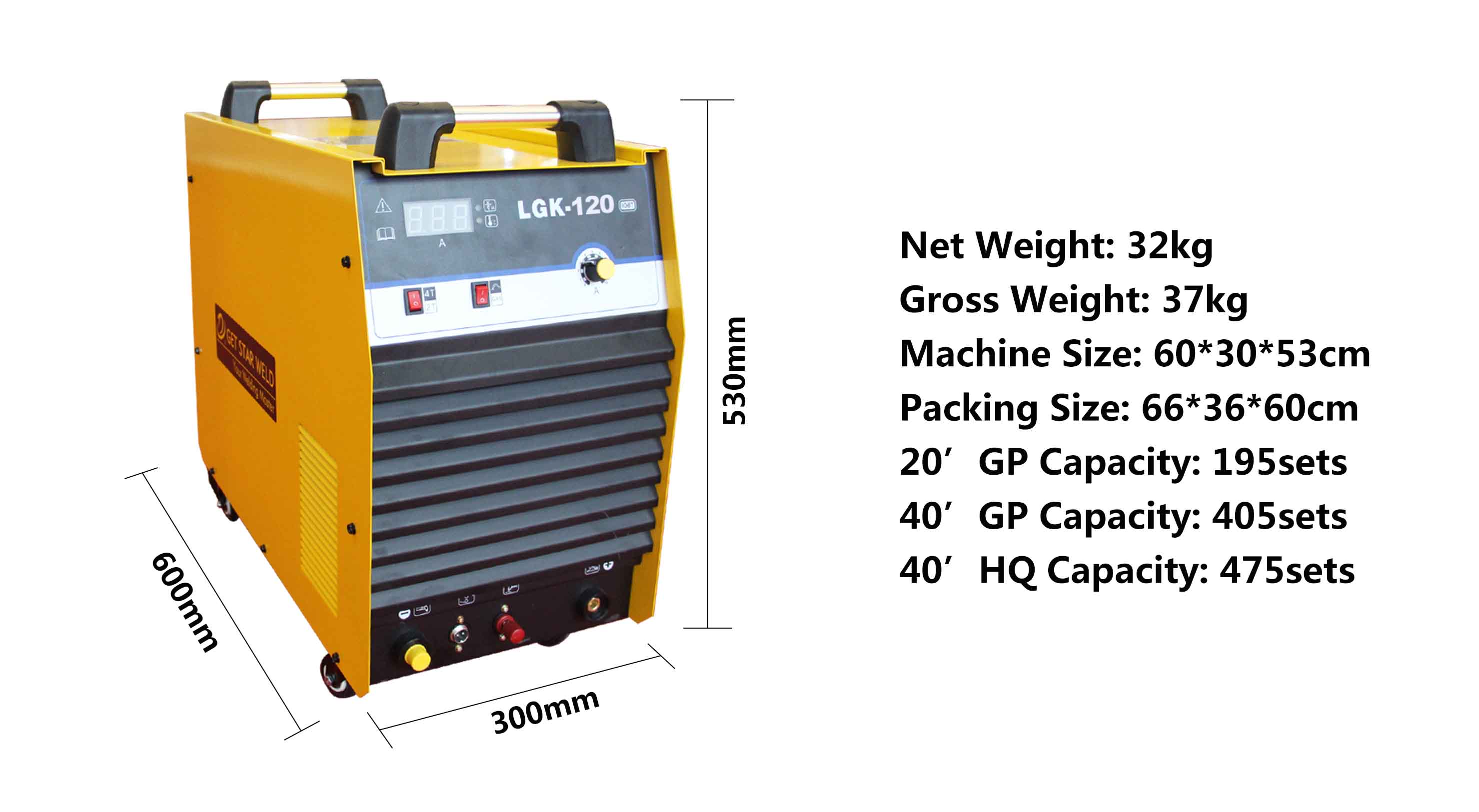

Machine Weight: 35Kg

Overall dimension（mm3）: 600×300×530
