PANA 350A
Product Parameters
PANA 350A;
Compatible Torch and Parts for Panasonic
Rating：350A CO2/300A Mixed Gases
Duty Cycle：60%
Wire Size：0.9-1.2mm
Length: 3m,5m or as required
Comfort Grip Head Design,
Ergonomic contact points for thumb and fingers.Provides a more comfortable grip and reduce operator fatigue.
Sufficient Heavy-duty Cable and Copper Construction.
Ensure flexibility and durability even under extreme conditions.
Highly conductive copper components ensure superior current carrying capacity and effectively dissipate heat for longer trouble-free performance.
Premium Quality End Connector
To improve gas seal integrity in gas applications, the Euro end connector has been redesigned.
Superior Parts.
Conductor,switch，gas nozzle,contact tip,swan neck are all superior quality.long life service. save repair costs.
Product Detail
| The Product Style | ||
| Torch Complete | Handle | Part Number |
| GSW 350 3M PANA CONNECTION | Yellow-Black Type | GSW-MIG-AP-10047 |
| GSW 350 4M PANA CONNECTION | Yellow-Black Type | GSW-MIG-AP-10048 |
| GSW 350 5M PANA CONNECTION | Yellow-Black Type | GSW-MIG-AP-10049 |
| GSW 350 3M EURO CONNECTION | Yellow-Black Type | GSW-MIG-AP-10128 |
| GSW 350 4M EURO CONNECTION | Yellow-Black Type | GSW-MIG-AP-10129 |
| GSW 350 5M EURO CONNECTION | Yellow-Black Type | GSW-MIG-AP-10130 |
| No. | Description | Part Number |
| 1 | Gas Nozzle | GSW-MIG-AP-20027 |
| 2 | Contact Tip | GSW-MIG-AP-30038 |
| 3 | Gas Diffuser | GSW-MIG-AP-70005 |
| 4 | Insulator | GSW-MIG-AP-50006 |
| 5 | Contact Tip Holder | GSW-MIG-AP-40027 |
| 6 | Swan Neck | NEP-MIG-AP-60008 |
| 7 | Switch | NEP-MIG-AP-12019+12020 |
| 8 | Front Handle | NEP-MIG-AP-12007 |
| 9 | Front Cable Support | NEP-MIG-AP-12027 |
| 10 | Back Cable Support | NEP-MIG-AP-12028 |
| 11 | Euro Central Connector Plug | NEP-MIG-AP-16004 |
| 12 | Pana Central Connector Plug | NEP-MIG-AP-16005 |
| 13 | Back Handle | NEP-MIG-AP-12023 |
| 14 | Gas Inlet Tube+Nut 9/16-18UNF | NEP-MIG-AP-16033 |
| 15 | Control Lead +2 Pin Plug | NEP-MIG-AP-16007 |
| 16 | Liner | GSW-MIG-AP-80029 |

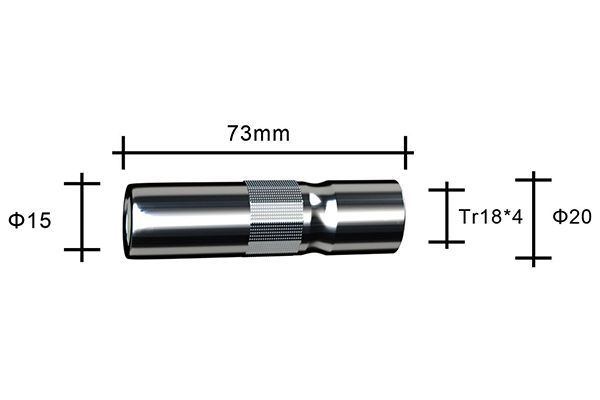

| Gas Nozzle（5pcs/Bag） | ||
| Description | Part Number | |
| Φ15 | Gas Nozzle | GSW-MIG-AP-20027 |

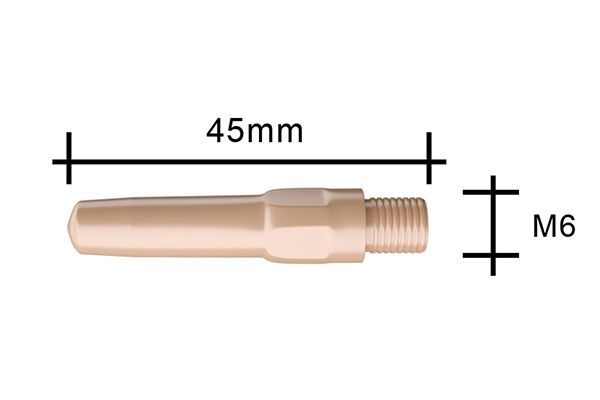

| Contact Tip E-cu（20pcs/Bag） | |
| Description | Part Number |
| M6*45*Φ0.8 Contact Tip E-Cu | GSW-MIG-AP-30038 |
| M6*45*Φ0.9 Contact Tip E-Cu | GSW-MIG-AP-30039 |
| M6*45*Φ1.0 Contact Tip E-Cu | GSW-MIG-AP-30040 |
| M6*45*Φ1.2 Contact Tip E-Cu | GSW-MIG-AP-30023 |
| Optional for CuCrZr Material | |
| Gas Diffuser（20pcs/Bag） | |
| Part Number | GSW-MIG-AP-70005 |

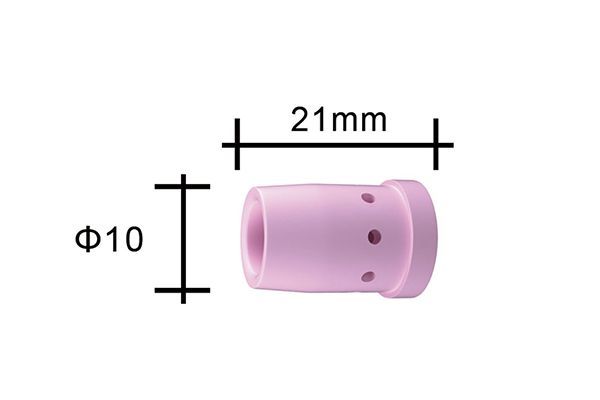

| Insulator （10pcs/Bag） | |
| Part Number | GSW-MIG-AP-50006 |

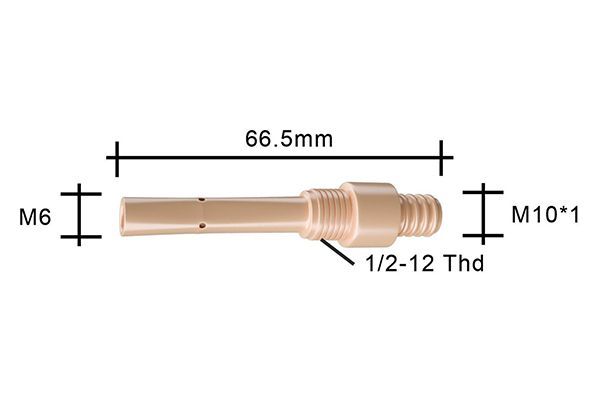

| Contact Tip Holder（10pcs/Bag） | |
| Description | Part Number |
| Contact Tip Holder （Brass） | GSW-MIG-AP-40023 |
| Contact Tip Holder （Copper） | GSW-MIG-AP-40027 |

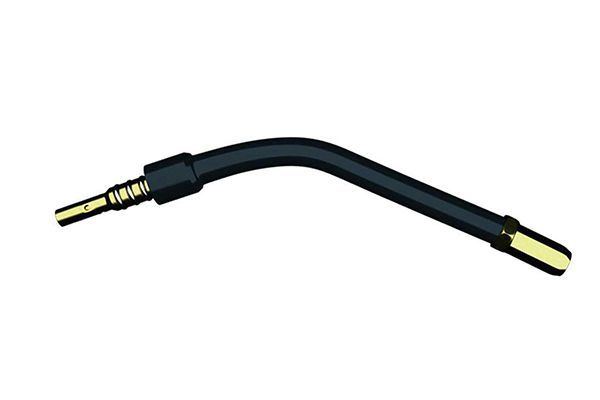

| Swan Neck（5pcs/Bag） | |
| Part Number | NEP-MIG-AP-60008 |
| Liner | |
| Description | Part Number |
| Liner ，for Wire 1.0-1.2., 3.2M | GSW-MIG-AP-80029 |
| Liner ，for Wire 1.0-1.2, 3.5M | GSW-MIG-AP-80030 |
| Liner ，for Wire 1.0-1.2, 5.2M | GSW-MIG-AP-80031 |
| Liner ，for Wire 1.0-1.2, 5.5M | GSW-MIG-AP-80032 |
| Liner ，for Wire 1.0-1.2, 3.2M 82B | GSW-MIG-AP-80041 |
| Liner ，for Wire 1.0-1.2, 3.5M 82B | GSW-MIG-AP-80042 |
| Liner ，for Wire 1.0-1.2， 5.2M 82B | GSW-MIG-AP-80043 |
| Liner ，for Wire 1.0-1.2, 5.5M 82B | GSW-MIG-AP-80044 |
