Get Star Weld PANA GSW-200 Air Cooled MIG/MAG Welding Torch

PANA 200A

Product Parameters

PANA 200A;

Compatible Torch and Parts for Panasonic
Rating:200A CO2/160A Mixed Gases
Duty Cycle:60%
Wire Size:0.8-1.2mm
Length: 3m,5m or as required











Comfort Grip Head Design,

Ergonomic contact points for thumb and fingers.Provides a more comfortable grip and reduce operator fatigue.

140x140
140x140





Sufficient Heavy-duty Cable and Copper Construction.

Ensure flexibility and durability even under extreme conditions.
Highly conductive copper components ensure superior current carrying capacity and effectively dissipate heat for longer trouble-free performance.

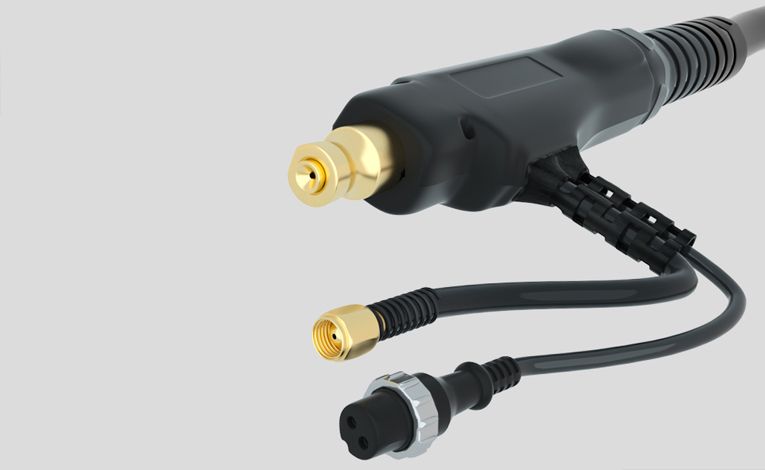

Premium Quality End Connector

To improve gas seal integrity in gas applications, the Euro end connector has been redesigned.

140x140
140x140

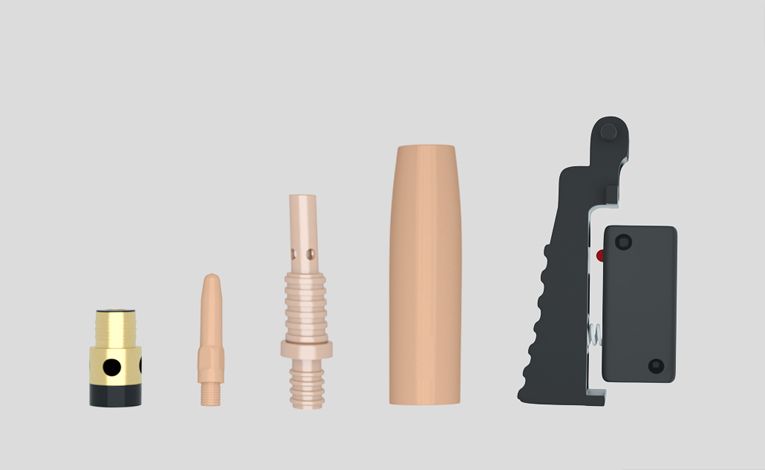

Superior Parts.

Conductor,switch,gas nozzle,contact tip,swan neck are all superior quality.long life service. save repair costs.



Product Detail



The Product Style
Torch Complete Handle Part Number
GSW 200 3M PANA CONNECTION Yellow-Black Type GSW-MIG-AP-10044
GSW 200 4M PANA CONNECTION Yellow-Black Type GSW-MIG-AP-10045
GSW 200 5M PANA CONNECTION Yellow-Black Type GSW-MIG-AP-10046
GSW 200 3M EURO CONNECTION Yellow-Black Type GSW-MIG-AP-10041
GSW 200 4M EURO CONNECTION Yellow-Black Type GSW-MIG-AP-10042
GSW 200 5M EURO CONNECTION Yellow-Black Type GSW-MIG-AP-10043

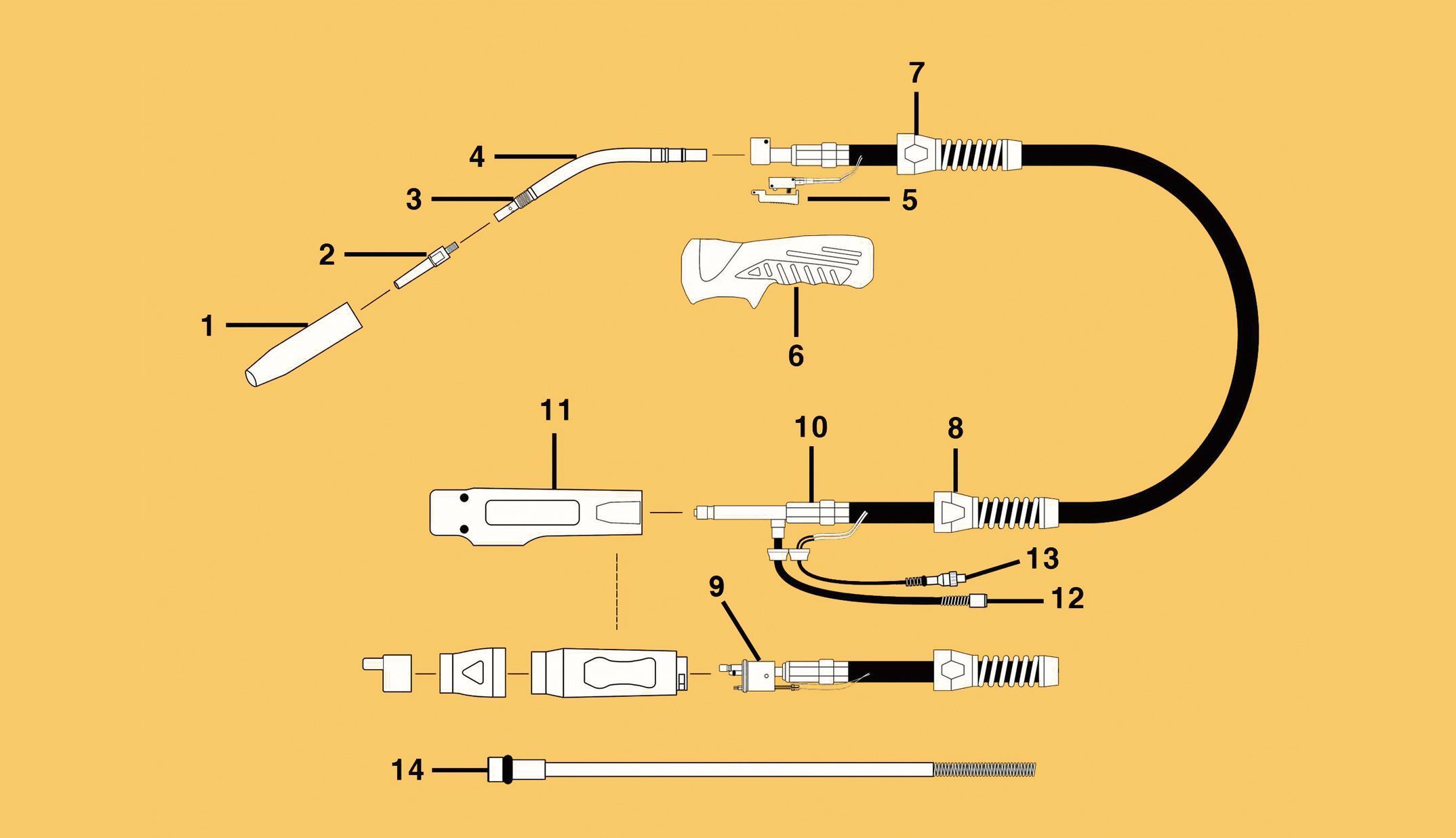

No. Description Part Number
1 Gas Nozzle GSW-MIG-AP-20007
2 Contact Tip GSW-MIG-AP-30038
3 Contact Tip Holder GSW-MIG-AP-40013
4 Swan Neck NEP-MIG-AP-60004
5 Switch NEP-MIG-AP-12019+12020
6 Front Handle NEP-MIG-AP-12007
7 Front Cable Support NEP-MIG-AP-12027
8 Back Cable Support NEP-MIG-AP-12028
9 Euro Central Connector Plug NEP-MIG-AP-16004
10 Pana Central Connector Plug NEP-MIG-AP-16005
11 Back Handle NEP-MIG-AP-12023
12 Gas Inlet Tube+Nut   9/16-18UNF NEP-MIG-AP-16033
13 Control Lead +2 Pin Plug NEP-MIG-AP-16007
14 Liner GSW-MIG-AP-80025

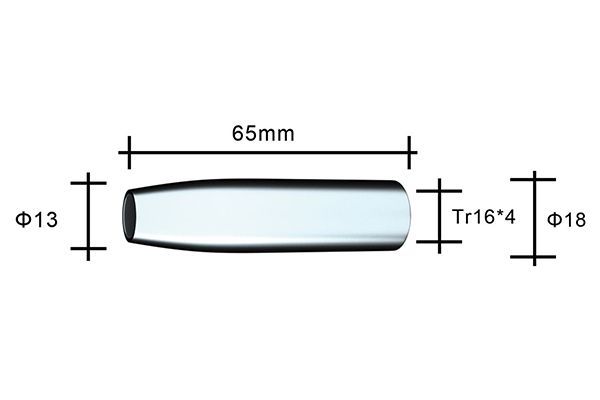

Gas Nozzle(10pcs/Bag)
Size Description Part Number
Φ13 Self-insulated  Gas Nozzle GSW-MIG-AP-20007

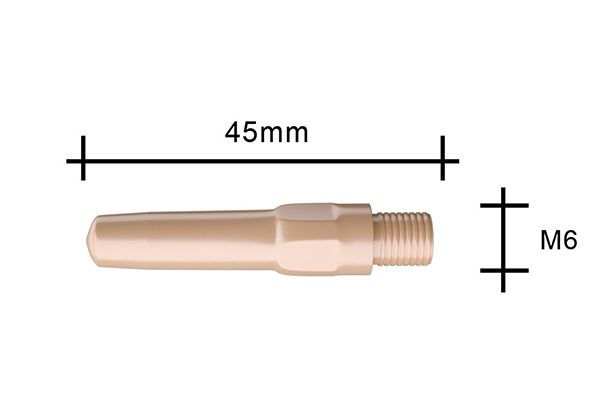

Contact Tip(20pcs/Bag)
Description Part Number
M6*45*Φ0.8  Contact Tip  E-Cu GSW-MIG-AP-30038
M6*45*Φ0.9  Contact Tip  E-Cu GSW-MIG-AP-30039
M6*45*Φ1.0  Contact Tip  E-Cu GSW-MIG-AP-30040
M6*45*Φ1.2  Contact Tip  E-Cu GSW-MIG-AP-30023
Optional for CuCrZr Material

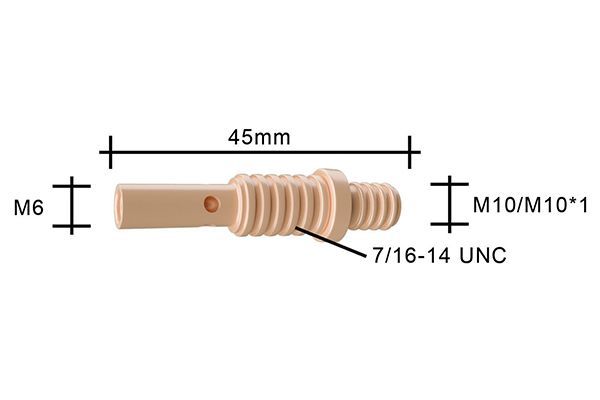

Contact Tip Holder(20pcs/Bag)
Description Part Number
Contact Tip Holder (Brass Thick) GSW-MIG-AP-40013
Contact Tip Holder(Brass Thin) GSW-MIG-AP-40015
Contact Tip Holder(Copper Thick) GSW-MIG-AP-40017
Contact Tip Holder (Copper Thin) GSW-MIG-AP-40019

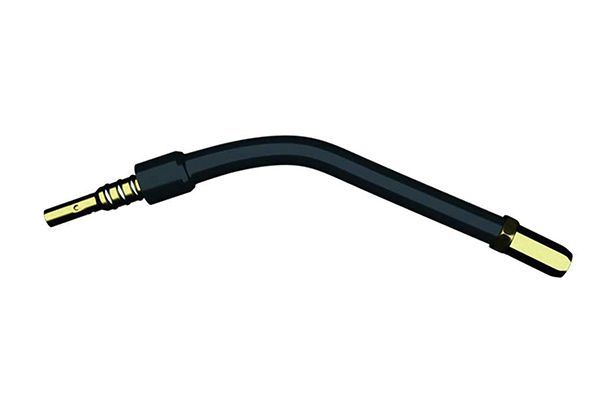

Swan Neck(10pcs/Bag)
Part Number NEP-MIG-AP-60004




Liner
Description Part Number
Liner ,for Wire 0.8-1.0,  3.2M GSW-MIG-AP-80025
Liner ,for Wire 0.8-1.0,  3.5M GSW-MIG-AP-80026
Liner ,for Wire 0.8-1.0,  5.2M GSW-MIG-AP-80027
Liner ,for Wire 0.8-1.0,  5.5M GSW-MIG-AP-80028
Liner ,for Wire 0.8-1.0,  3.2M 82B GSW-MIG-AP-80037
Liner ,for Wire 0.8-1.0,  3.5M 82B GSW-MIG-AP-80038
Liner ,for Wire 0.8-1.0,  5.2M 82B GSW-MIG-AP-80039
Liner ,for Wire 0.8-1.0,  5.5M 82B GSW-MIG-AP-80040















Packing Details
