Get Star Weld EURO GSW-501D Water Cooled MIG/MAG Welding Torch


Product Parameters


Compatible Torch and Parts for BINZEL
Rating:500A CO2/450A Mixed Gases
Duty Cycle:60%
Wire Size:1.0-1.6mm
Length: 3m,5m or as required






Comfort Grip Head Design,

Ergonomic contact points for thumb and fingers.Provides a more comfortable grip and reduce operator fatigue.




Sufficient Heavy-duty Cable and Copper Construction.

Ensure flexibility and durability even under extreme conditions.
Highly conductive copper components ensure superior current carrying capacity and effectively dissipate heat for longer trouble-free performance.

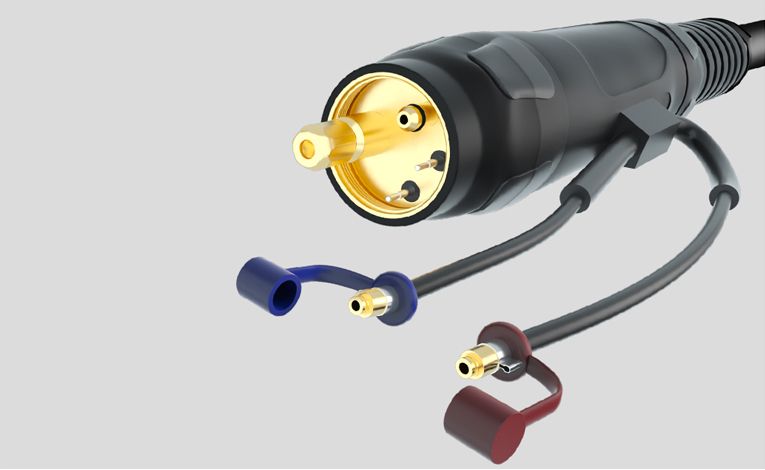

Premium Quality End Connector

To improve gas seal integrity in gas applications, the Euro end connector has been redesigned.

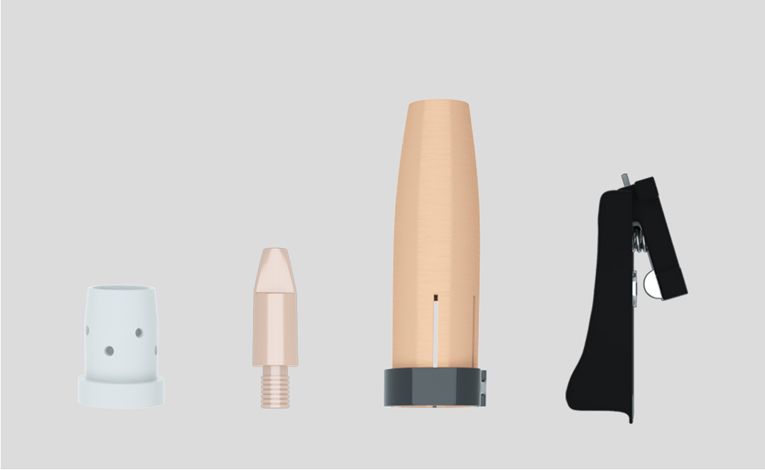

Superior Parts.

Conductor,switch,gas nozzle,contact tip,swan neck are all superior quality.long life service. save repair costs.

Product Detail


The Product Style
Torch Complete Handle Part Number
GSW 501D 3M Yellow-Black Type GSW-MIG-AP-10053
GSW 501D 4M Yellow-Black Type GSW-MIG-AP-10054
GSW 501D 5M Yellow-Black Type GSW-MIG-AP-10126



No. Description Part Number
1 Gas Nozzle GSW-MIG-AP-20042
2 Contact Tip GSW-MIG-AP-30036
3 Contact Tip Holder GSW-MIG-AP-40037
4 Gas Diffuser GSW-MIG-AP-70004
5 Swan Neck NEP-MIG-AP-60031
6 Switch NEP-MIG-AP-12018
7 Front Handle NEP-MIG-AP-12006
8 Front Cable Support NEP-MIG-AP-12025
9 Back Cable Support NEP-MIG-AP-12026
10 Euro Central Connector Plug NEP-MIG-AP-16041
11 Back Handle NEP-MIG-AP-12022
12 Red Tube-Water in
13 Blue Tube-Water out
14 Adaptor Nut NEP-MIG-AP-12024
15 Liner GSW-MIG-AP-80009

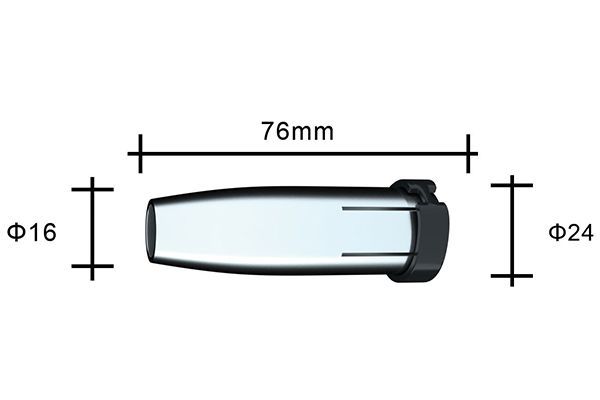

Gas Nozzle (5pcs/Bag)
Size Description Part Number
Φ20 Cylindrical Nozzle GSW-MIG-AP-20060
Φ16 Conical Nozzle GSW-MIG-AP-20042
Φ14 Tapered Nozzle GSW-MIG-AP-20061

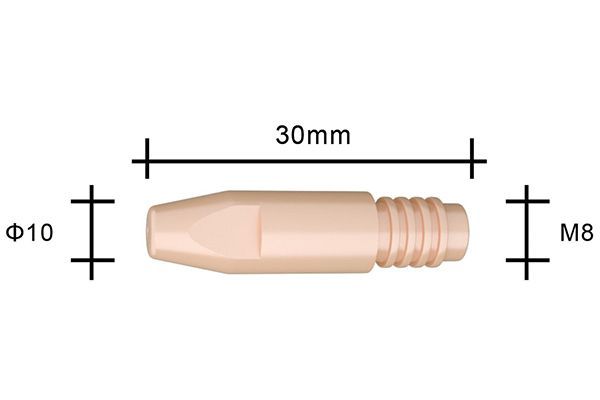

Contact Tip E-cu (20pcs/Bag)
Description Part Number
M8*30*Φ0.8  Contact Tip  E-Cu GSW-MIG-AP-30036
M8*30*Φ1.0  Contact Tip  E-Cu GSW-MIG-AP-30015
M8*30*Φ1.2  Contact Tip  E-Cu GSW-MIG-AP-30018
M8*30*Φ1.6  Contact Tip  E-Cu GSW-MIG-AP-30045
Optional for CuCrZr Material

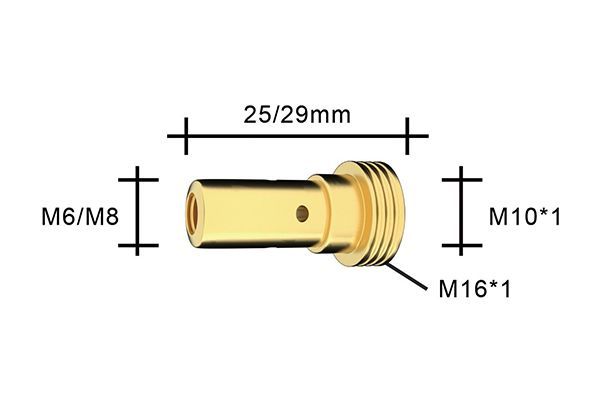

Contact Tip Holder(20pcs/Bag)
Part Number GSW-MIG-AP-40037

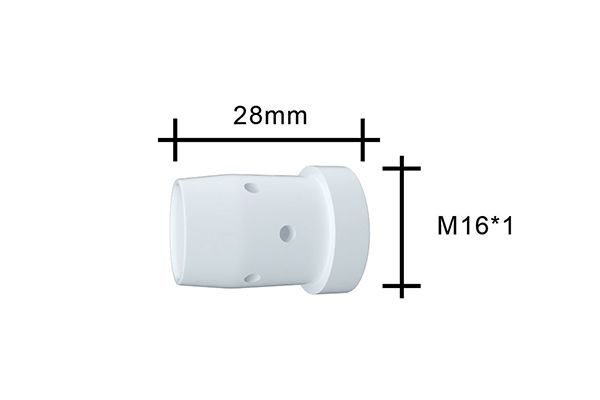

Gas Diffuser(20pcs/Bag)
Part Number GSW-MIG-AP-70004

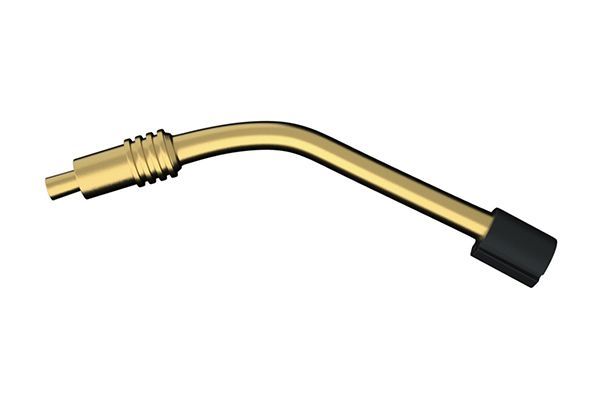

Swan Neck(10pcs/Bag)
Part Number NEP-MIG-AP-60031




Description Part Number
Liner,for Wire 1.2-1.6,  3.2M GSW-MIG-AP-80009
Liner,for Wire  1.2-1.6,  3.5M GSW-MIG-AP-80010
Liner,for Wire  1.2-1.6,  5.2M GSW-MIG-AP-80011
Liner,for Wire  1.2-1.6,  5.5M GSW-MIG-AP-80012
Liner,for Wire  1.2-1.6,  3.2M 82B GSW-MIG-AP-80021
Liner,for Wire  1.2-1.6,  3.5M 82B GSW-MIG-AP-80022
Liner,for Wire  1.2-1.6,  5.2M 82B GSW-MIG-AP-80023
Liner,for Wire  1.2-1.6,  5.5M 82B GSW-MIG-AP-80024
