Get Star Weld A-101 Air Cooled Plasma Cutting Torch


Product Parameters


Air Pressure:4.5-5.5 Bar
Duty Cycle60% :100A
Length: 3m,5m or as required





Senior Micro Switch,

Excellent consumable life.




Unique Design,

Designed for superior operator comfort,Nylon handle,it‘s non-breakable even a 100kg man steps on it.





Effectively extend service life, not reconciled to ordinary.





Durable Torch Cable,

prevents snagging on fixtures and materials.




Exquisite Nozzle and Tip,

genuine materials ,better perforation,fast cutting speed,long-life service.


Product Detail


The Product Style
We Can Supply Complete Torch With Handle,Cable Termination,Cable Length According to Customer Request.

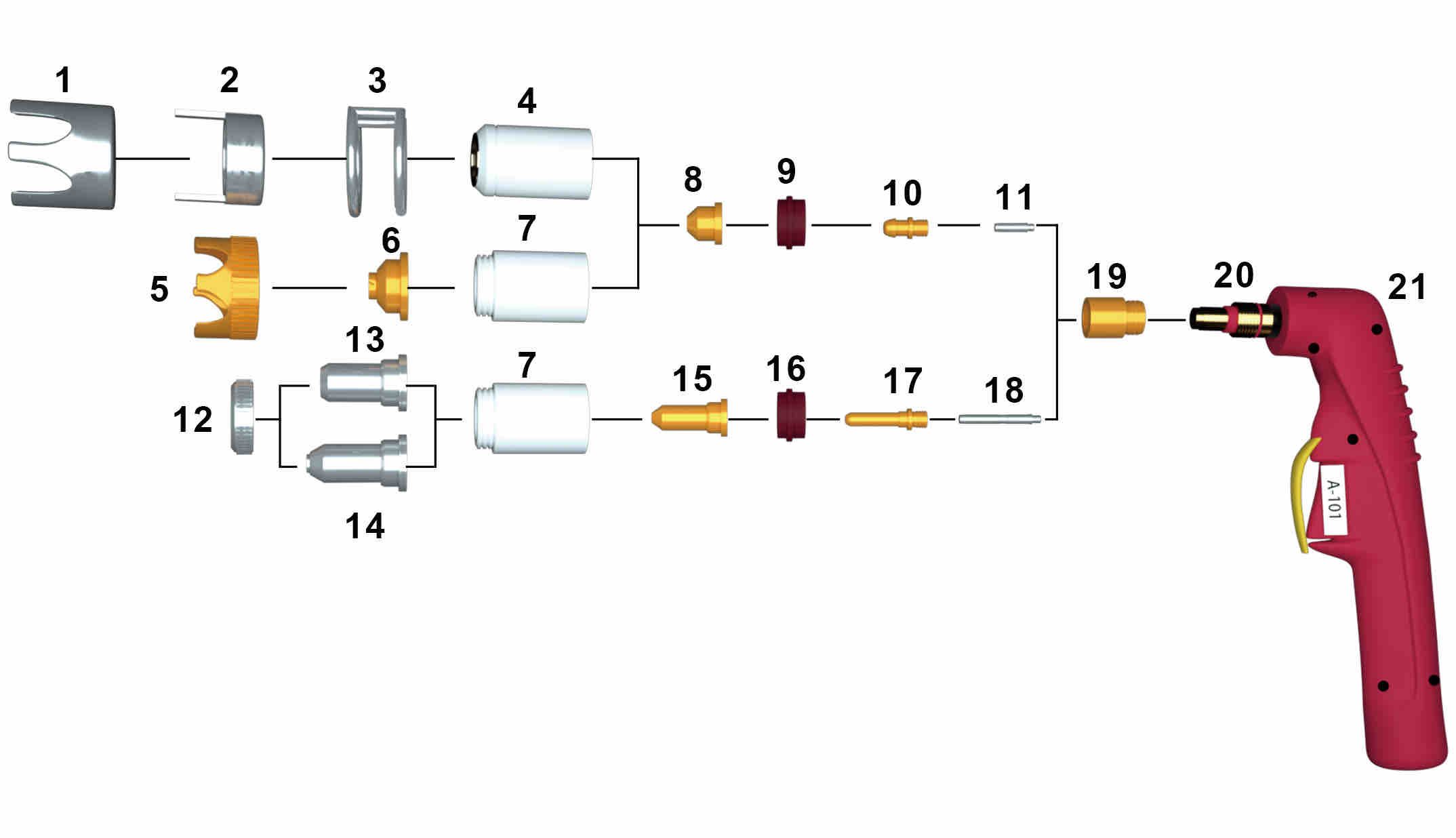

No. Description Reference
1 Four Point Bracket A101 CV0014
2 Two Point Bracket A101 CV0012
3 Spacer  Spring A101 CV0011
4 Outside Nozzle A101 PC0111
5 Four Point Bracket with Insulate Ring A101 CV0039
6 Insulate Bracket/Contact Cut A101  CV0023
7 Contact Nozzle A101 PC0130
8 Tip Φ1.1 A101 PD0101-11
  Tip Φ1.4 A101 PD0101-14
  Tip Φ1.7 A101 PD0101-17
9 Air Diffuser A101-141 PE0101
10 Electrode A101 PR0101
11 Air Tube A101 FH0562
12 Locking Nut CV0044
13 Contact Cut Shield Cup  A101 CV0008
14 Long Contact Cut Shield Cup  A101 CV0009
15 Long  Tip Φ1.4 A101 PD0117-14
Long  Tip Φ1.7  A101 PD0117-17
Long  Tip 50A  A101 PD0111
16 Air Diffuser A151 PE0103
17 Long Electrode A101 PR0116
18 Long Air Tube
19 Neck Insulate Ring A101 PE4001
20  O-Ring Φ18.77x 1.78mm in Sillica  A101 EA0125
21 Plasma Torch Head (Hand)A101 PF0145

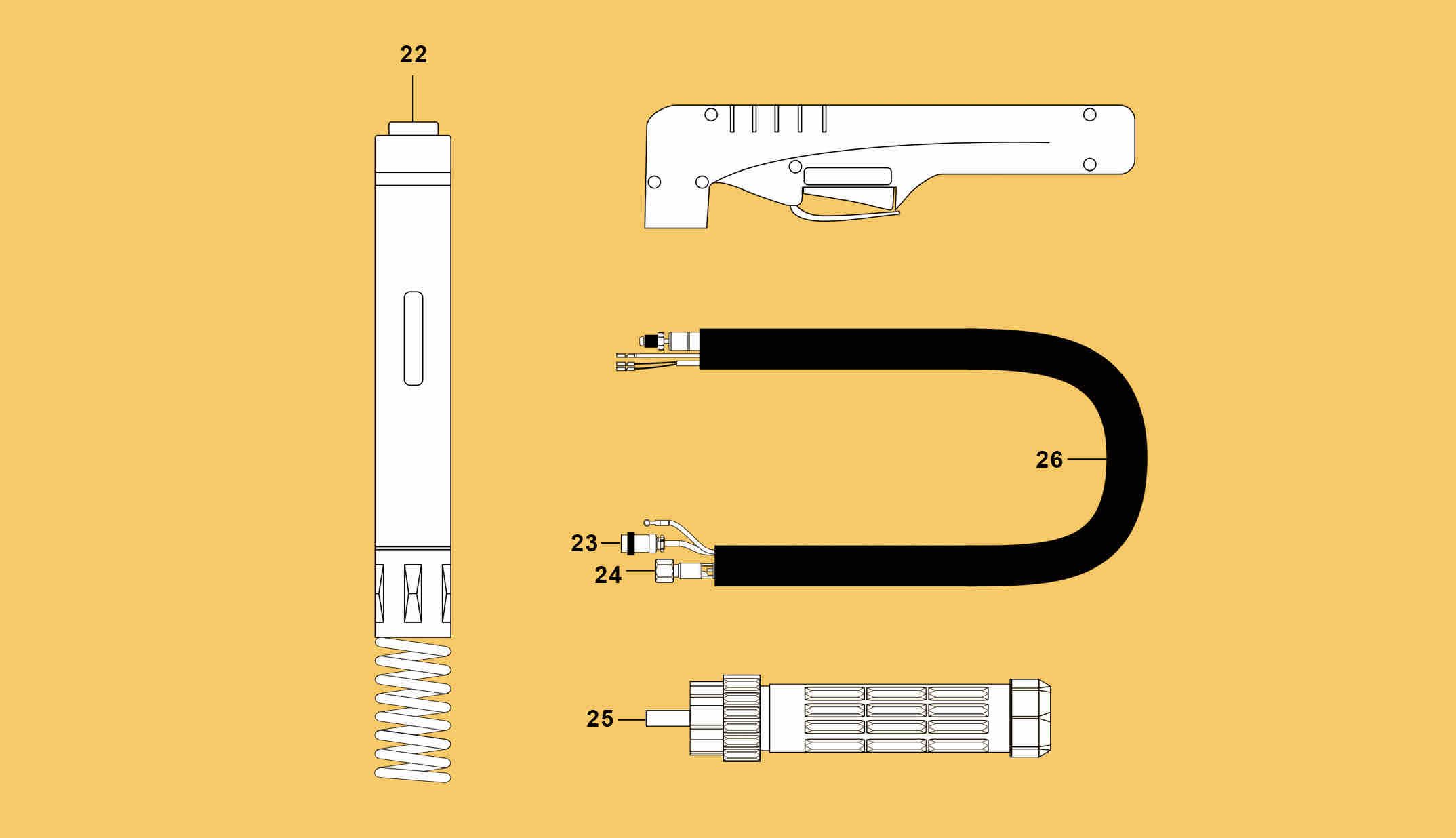

22 Plasma Torch Head Vertical( Machine)A101 PF0115
23  2 Pin Plug NEP-OTH-AP-29001
24 Adapter M16*1.5 NEP-OTH-AP-170023+17029
25 Central Adaptor 4 pins NEP-CUT-AP-13001
26 Cable Assembly (Length as Required)
