A-141
Product Parameters
A-141
Air Pressure：4.5-5.5 Bar
Duty Cycle60% :140A
Length: 3m,5m or as required
Senior Micro Switch,
Excellent consumable life.
Unique Design,
Designed for superior operator comfort,Nylon handle,it‘s non-breakable even a 100kg man steps on it.
Terminations,
Effectively extend service life, not reconciled to ordinary.
Durable Torch Cable,
prevents snagging on fixtures and materials.
Exquisite Nozzle and Tip,
genuine materials ,better perforation,fast cutting speed,long-life service.
Product Detail

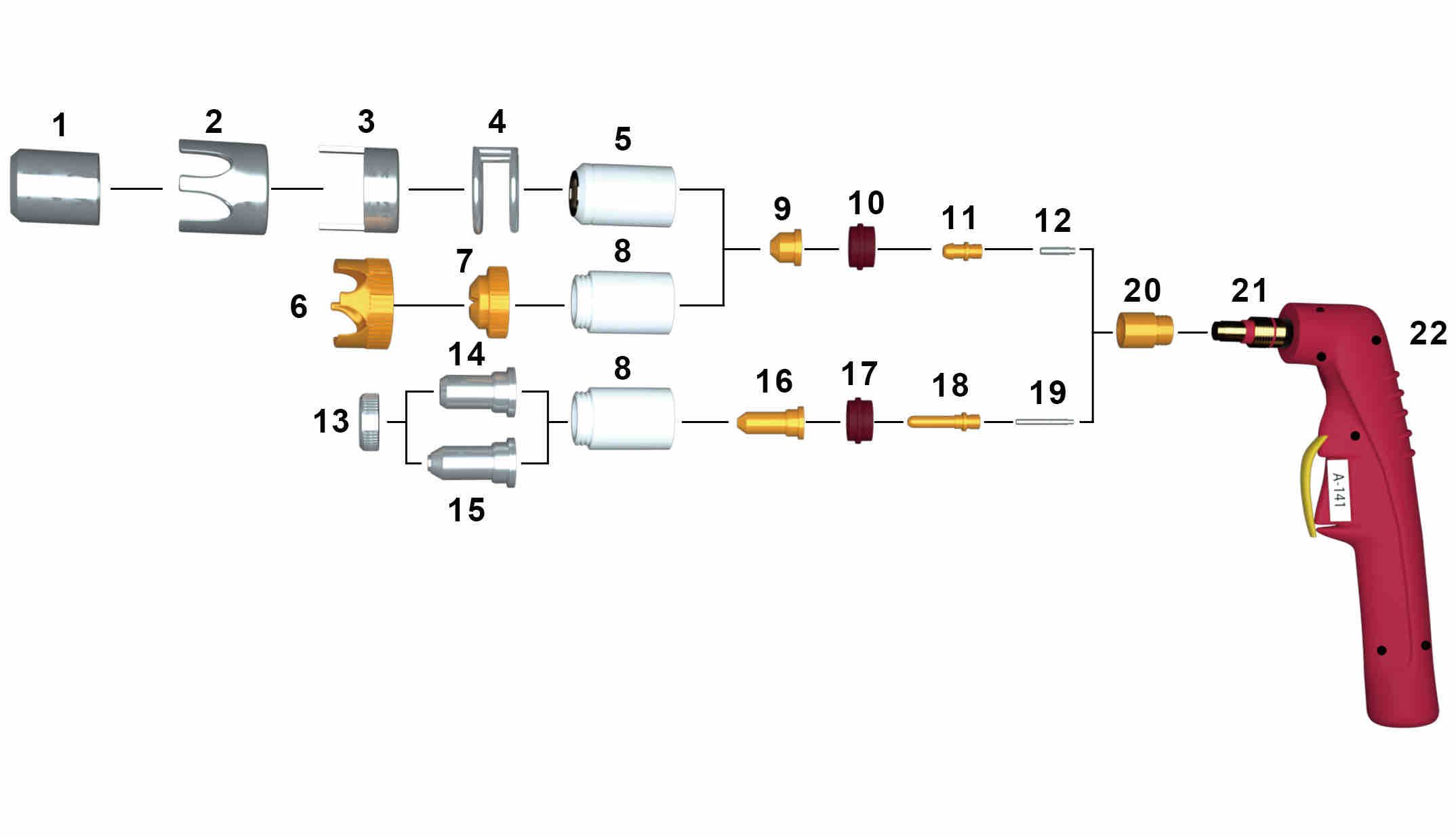

| The Product Style | |
| We Can Supply Complete Torch With Handle，Cable Termination，Cable Length According to Customer Request. |
| No. | Description | Reference |
| 1 | Gouge Bracket A141 | CV0013 |
| 2 | Four Point Bracket A141 | CV0014 |
| 3 | Two Point Bracket A141 | CV0012 |
| 4 | Spacer Spring A141 | CV0011 |
| 5 | Outside Nozzle A141 | PC0102 |
| 6 | Four Point Bracket with Insulate Ring A141 | CV0039 |
| 7 | Insulate Bracket/Contact Cut A141 | CV0023 |
| 8 | Contact Cutting Nozzle long life A141 | PC0131 |
| 9 | Tip Φ1.1 A141 | PD0101-11 |
| Tip Φ1.4 A141 | PD0101-14 | |
| Tip Φ1.7 A141 | PD0101-17 | |
| Tip Φ1.9 A141 | PD0101-19 | |
| 10 | Air Diffuser A141 | PE0101 |
| 11 | Electrode A141 | PR0101 |
| 12 | Air Tube | FH0563 |
| 13 | Lock Nut A141 | CV0044 |
| 14 | Contact Cut Shield Cup A141 | CV0008 |
| 15 | Long Contact Cut Shield Cup A141 | CV0009 |
| 16 | Long Tip Φ1.4 A141 | PD0117-14 |
| Long Tip Φ1.7 A141 | PD0117-17 | |
| Long Tip Φ1.9 A141 | PD0117-19 | |
| Long Tip 50A A141 | PD0111 | |
| 17 | Air Diffuser A151 | PE0103 |
| 18 | Long Electrode A141 | PR0116 |
| 19 | Long Air Tube | |
| 20 | Neck Insulate Ring A141 | PE4002 |
| 21 | O-Ring Φ18.77x 1.78mm in Sillica A141 | EA0131 |

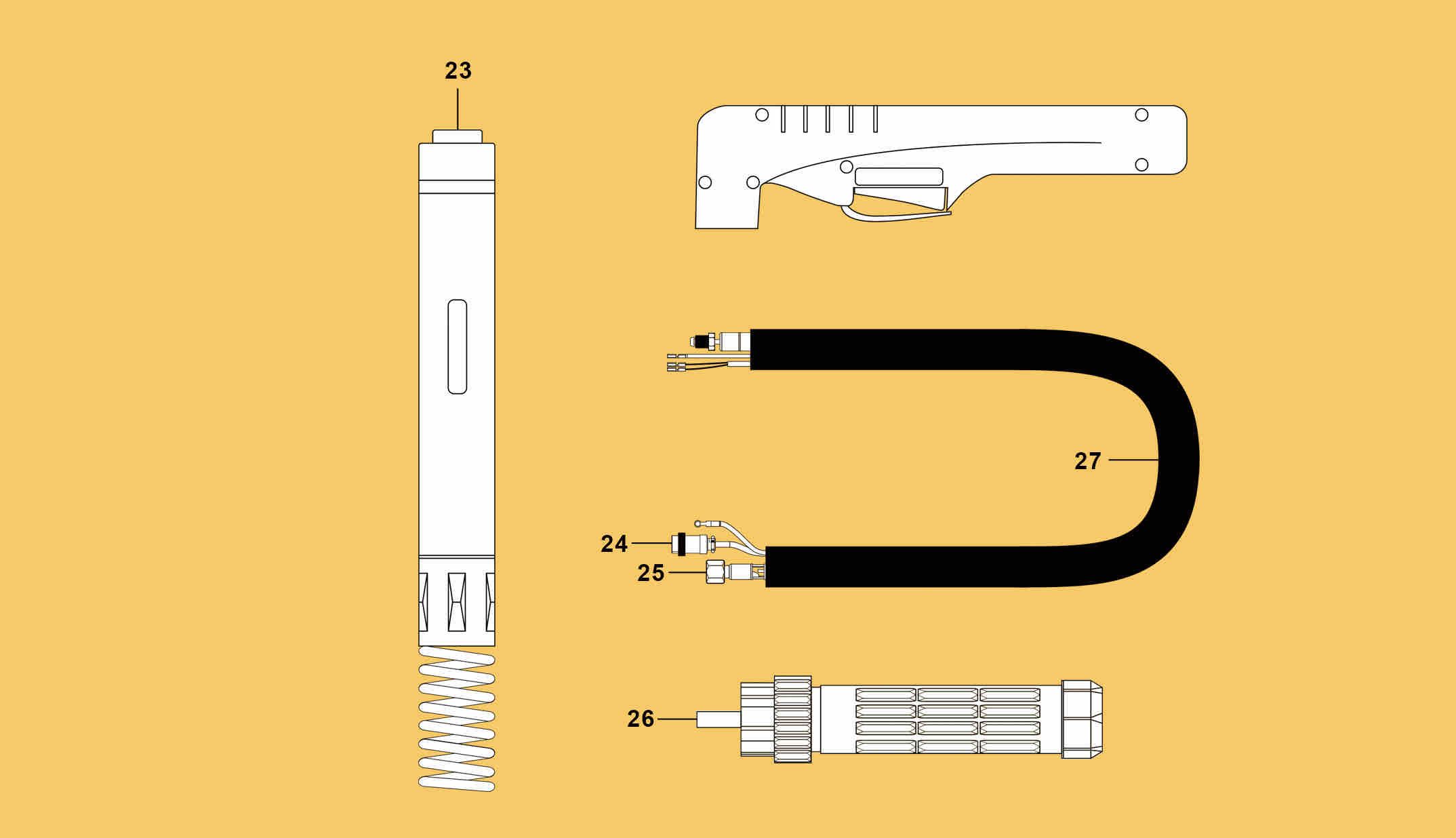

| 22 | Plasma Torch Head （Hand）A141 | PF0102 |
| 23 | Plasma Torch Head Vertical（ Machine）A141 | PF0155 |
| 24 | 2 Pin Plug | NEP-OTH-AP-29001 |
| 25 | Adapter M16*1.5 | NEP-OTH-AP-170023+17029 |
| 26 | Central Adaptor 4 pins | NEP-CUT-AP-13001 |
| 27 | Cable Assembly （Length as Required） |
